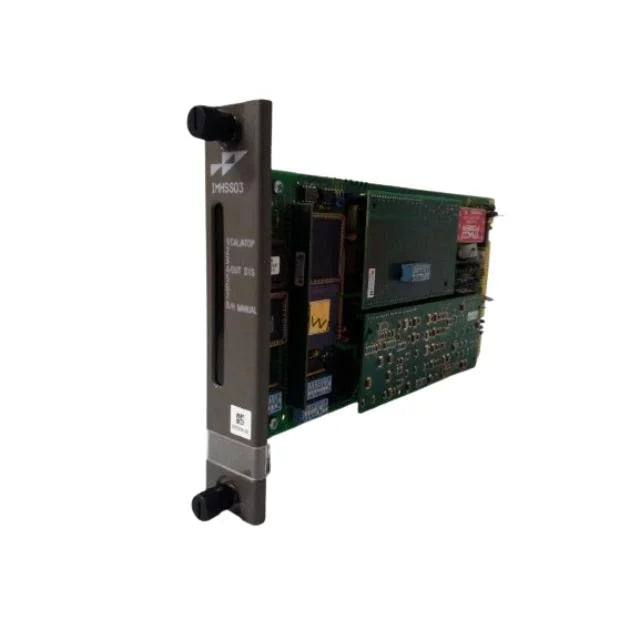

ABB IMHSS03 Signal Processing Module

Description:

IMHSS03 HYDRAULIC SERVO MODULE VALVE POSITION CONTROL PLUG-IN The IMHSS03 is a sophisticated industrial signal processing module designed to enhance the performance and efficiency of control systems in various automation environments. This module excels in handling high-speed signals with precision, making it ideal for applications that require accurate data acquisition and processing. The IMHSS03 is engineered for robust performance and durability, featuring a compact and modular design that integrates seamlessly into control panels. It is particularly well-suited for tasks involving signal conditioning, data acquisition, and real-time monitoring, ensuring reliable operation in demanding industrial settings.

Technical Specifications:

• Type: Signal Processing Module
• Model: IMHSS03
• Input Channels: Typically supports multiple analog and/or digital inputs
• Output Channels: Multiple analog and/or digital outputs
• Signal Type: Analog (Voltage/Current), Digital
• Input Range:
• Analog Voltage: ±10 V
• Analog Current: 4-20 mA
• Accuracy: ±0.1% of full scale
• Sampling Rate: Up to 1 kHz per channel (varies by application)
• Communication Interface: RS-485, Ethernet, or other industrial protocols
• Power Supply: 24 V DC
• Operating Temperature: -20°C to 60°C
• Dimensions: 120 mm x 100 mm x 75 mm
• Weight: 0.8 kg
• Protection Class: IP20
• Housing Material: Flame-Retardant Plastic
• Mounting Type: DIN Rail or Panel Mount
• Certifications: CE, UL
