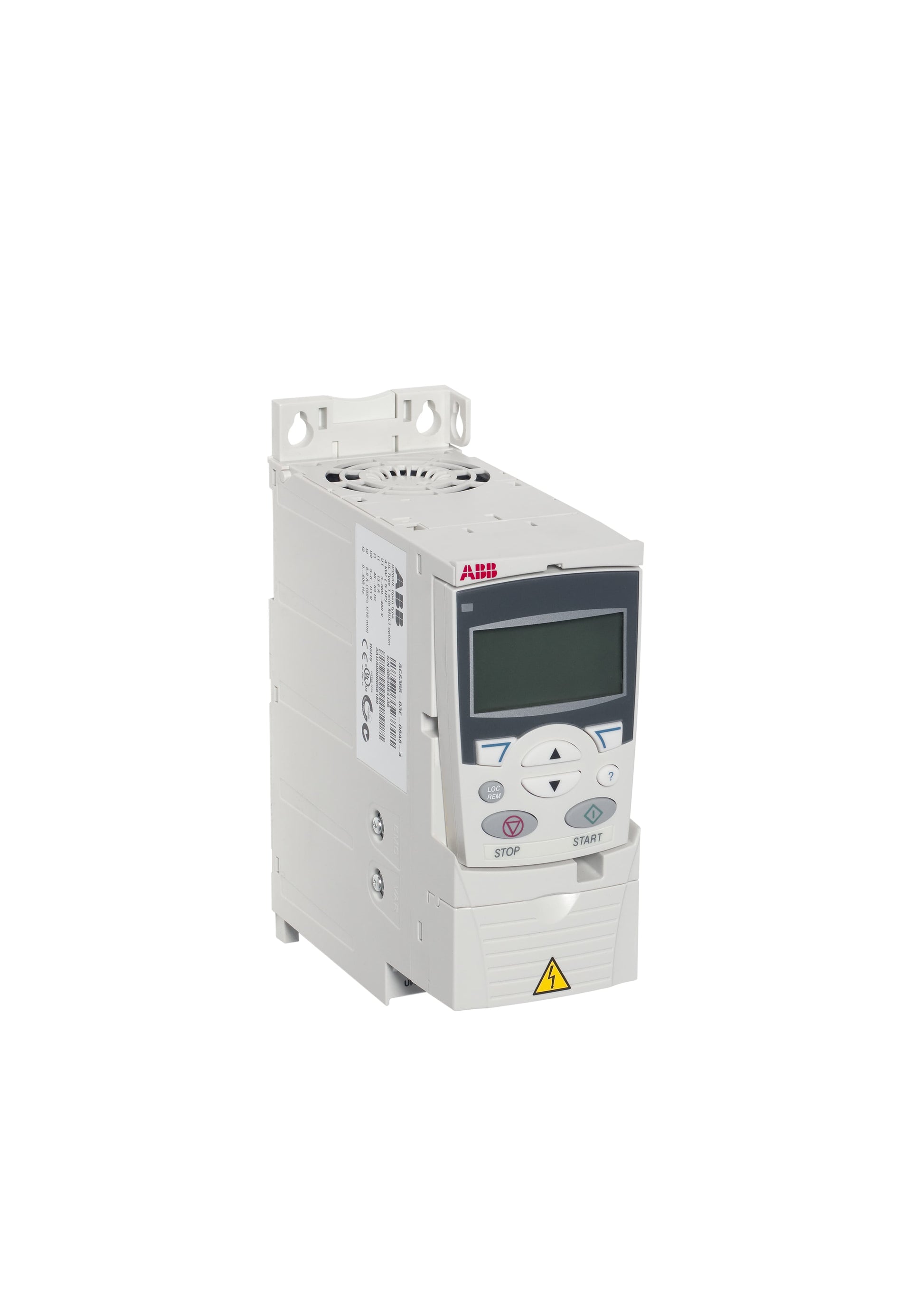

ABB Interter Drive ACS355-03E-04A1-4 380V 1.5KW Completely Replace ACS35503E04A14

Description:

The ABB ACS355-03E-04A1-4 380V 1.5 kW Inverter Drive is used in industrial motor control systems to provide compact variable speed control and efficient operation for three-phase AC motors. Commonly installed in conveyor systems, packaging machinery, mixers, pumps, and small automated equipment where precise speed regulation, reduced mechanical stress, and energy-efficient motor control are required. Maintenance teams and system integrators use this drive for equipment retrofits, control panel upgrades, replacement of failed VFDs, and new machine builds.

Applications:

The ABB ACS355-03E-04A1-4 is commonly used in light to medium industrial automation environments including material handling systems, HVAC units, food and beverage processing equipment, printing machinery, and small manufacturing machines where reliable motor speed regulation improves process efficiency, reduces wear, and enhances overall system performance.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS355-03E-04A1-4
• Product Type: Variable Frequency Drive (VFD) / Inverter
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 4.1 A
• Power Rating: Approximately 1.5 kW (2 HP nominal, 460 V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and sensorless vector control
• Enclosure Rating: IP20
• Integrated Features: Built-in EMC filter and braking chopper (model dependent)
• Mounting Type: DIN rail or panel mounted
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)

Common Replacements:

• ABB ACS150-03E-04A1-4
• ABB ACS310-03E-04A1-4
• ABB ACS580-01-04A1-4
