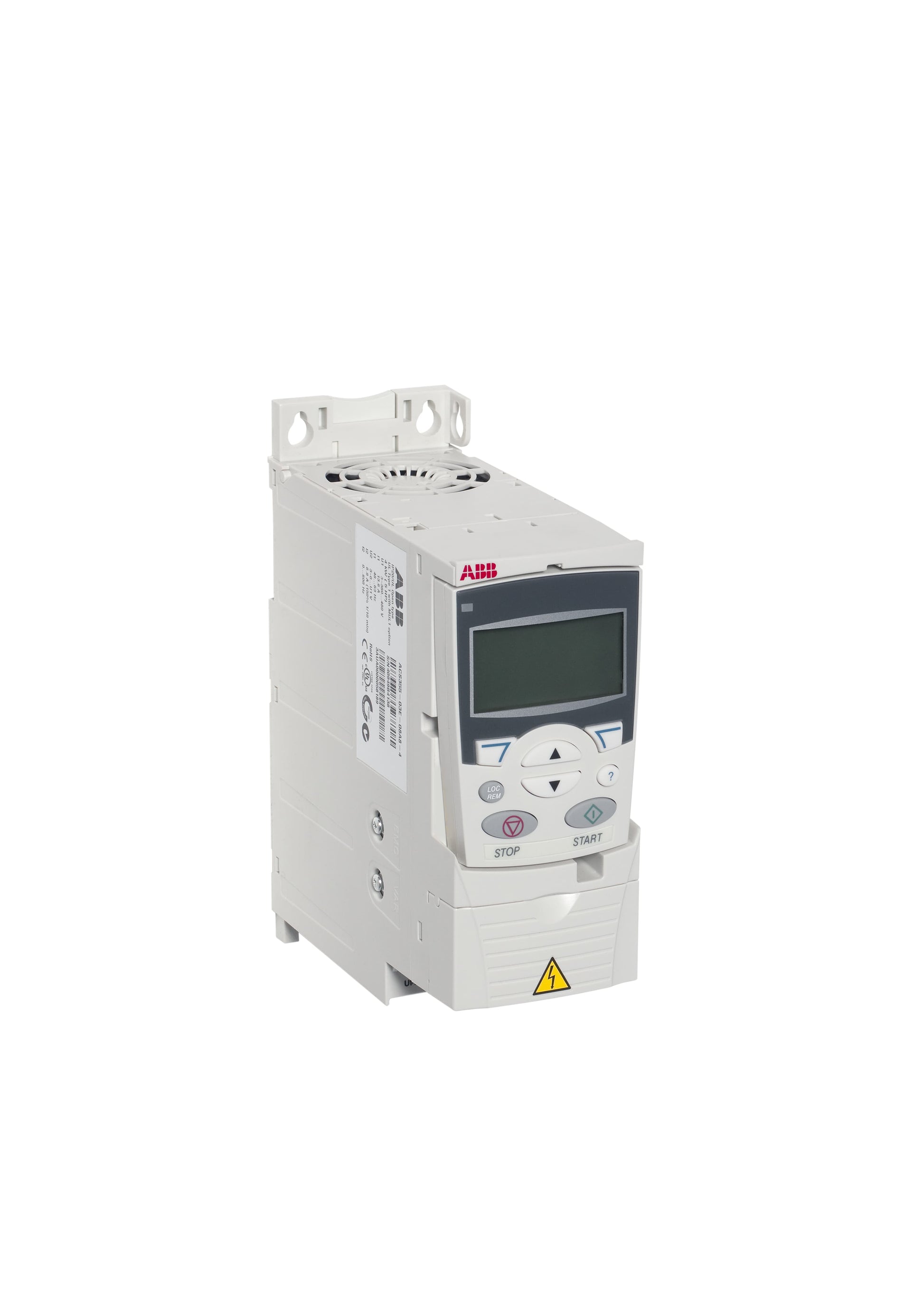

ABB Inverter ACS355-03E-08A8-4 ACS355 4KW ACS35503E08A84

Description:

The ABB ACS355-03E-08A8-4 Inverter Drive is used in industrial motor control systems to provide compact variable speed control for three-phase AC motors up to approximately 4 kW. Commonly installed in conveyor systems, packaging machinery, mixers, pumps, and small automation equipment where reliable speed regulation and space-saving drive design are required. Maintenance teams and system integrators use this drive for equipment retrofits, control panel upgrades, replacement of failed VFDs, and new machine builds.

Applications:

The ABB ACS355-03E-08A8-4 is commonly used in light industrial and OEM applications including material handling systems, HVAC units, printing presses, food and beverage processing equipment, and small manufacturing machinery where precise motor control improves efficiency, reduces mechanical wear, and enhances process accuracy.

Technical Specifications:

• Manufacturer: ABB
• Model: ACS355-03E-08A8-4
• Product Type: Variable Frequency Drive (VFD)
• Input Voltage: 380–480 V AC, 3-phase
• Rated Output Current: 8.8 A
• Power Rating: Approximately 4 kW (5 HP nominal, 460 V)
• Frequency Range: 0–500 Hz (programmable)
• Control Method: Scalar (V/Hz) and sensorless vector control
• Enclosure Rating: IP20
• Integrated Features: Built-in EMC filter and braking chopper (model dependent)
• Mounting Type: DIN rail or panel-mounted
• Operating Temperature Range: 0 °C to +40 °C (higher with derating)

Common Replacements:

• ABB ACS150-03E-010A4-4
• ABB ACS310-03E-08A8-4
• ABB ACS580-01-08A8-4
