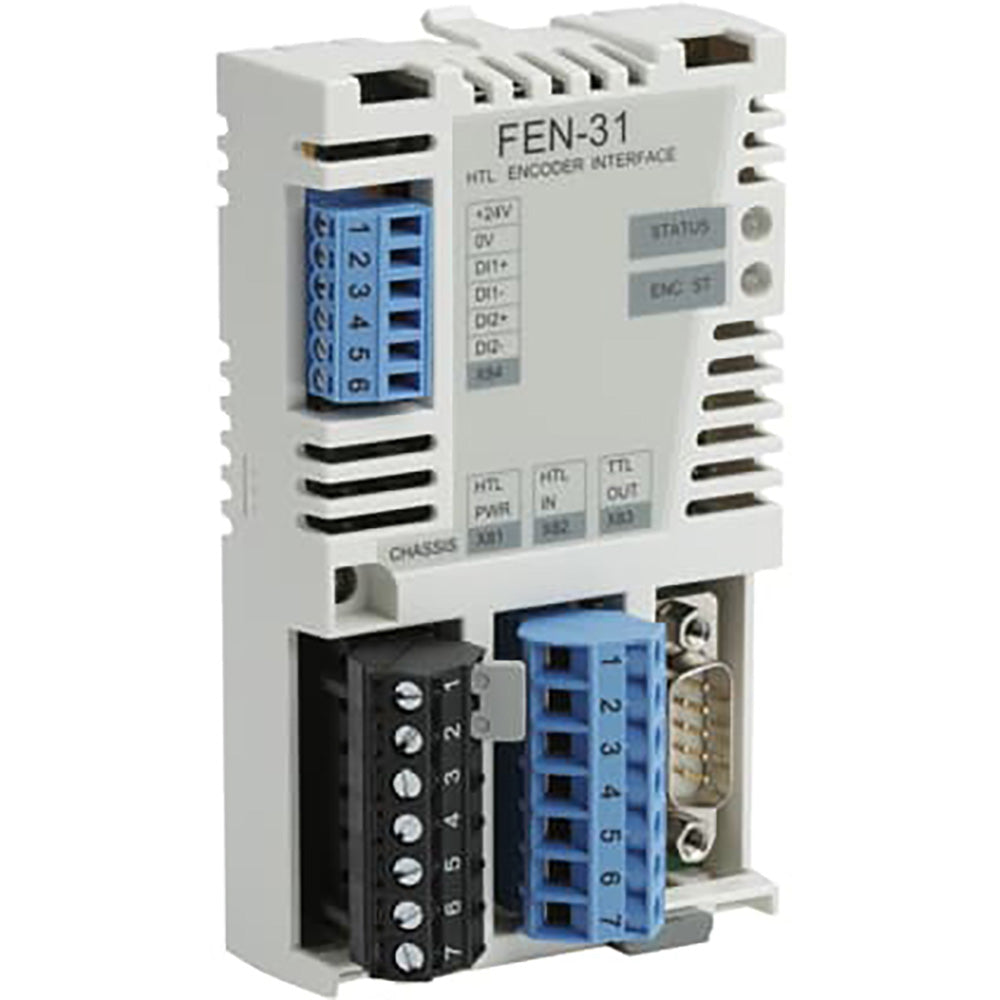

ABB FEN-31 Inverter Interface Module FEN31

Description:

FEN31 HTL ENCODER INTERFACE CARD (+L502) INCREMENTAL The ABB FEN-31 is an inverter interface module that provides high-speed, fiber optic communication for ABB drives. This module is used to establish a secure and fast connection between drives and automation systems using the EtherCAT protocol, allowing for real-time control and monitoring. The FEN-31 is designed for easy integration into industrial networks where low-latency and reliable communication are critical, such as in motion control and synchronization applications. Its robust design ensures optimal performance in demanding industrial environments.

Technical Specifications:

• Model: FEN-31
• Type: Fiber Optic Communication Interface Module
• Protocol: EtherCAT
• Compatibility: ABB ACS series drives (e.g., ACS800, ACS850)
• Interface: Fiber optic communication with EtherCAT network
• Transmission Speed: Up to 100 Mbps
• Operating Voltage: 24V DC (supplied by the drive)
• Power Consumption: Typically 1.5W
• Operating Temperature Range: -10°C to +50°C (14°F to 122°F)
• Degree of Protection: IP20 (protected against solid objects larger than 12.5 mm)
• Mounting Type: DIN rail or direct attachment to the drive
• Communication Features:
• Real-time data transmission and control
• Low-latency communication for high-speed applications
• Full integration with EtherCAT automation networks
• Standards Compliance: IEC 61158 (EtherCAT), CE, UL
