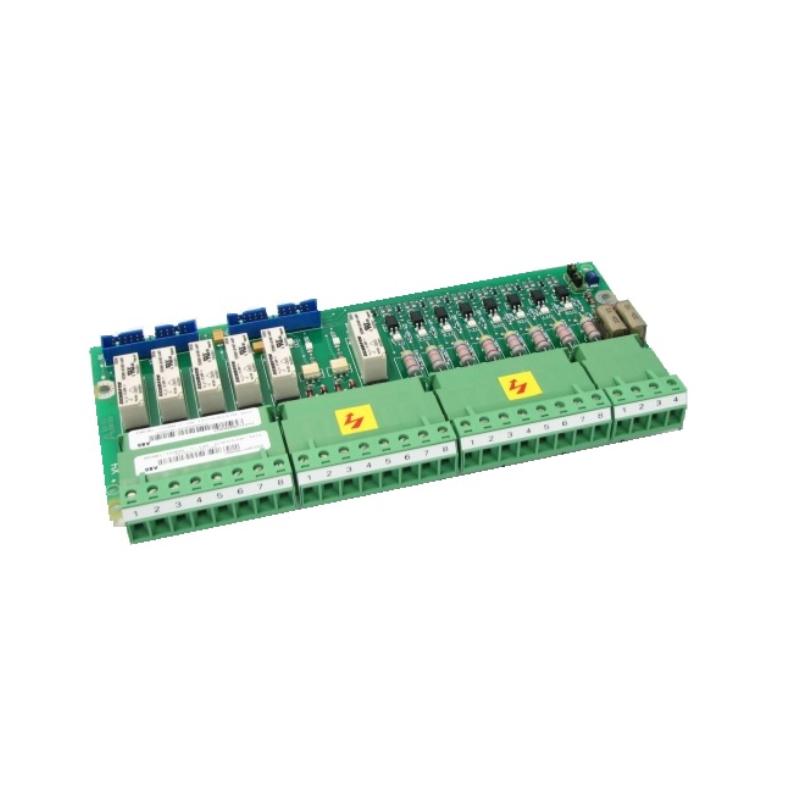

ABB SDCS-IOB-1 PLC Inverter I/O Control Board Compensation Controller SDCSIOB1

Description:

SDCSIOB1 TERMINAL BOARD I/O MODULE REPLACED BY 3ADT220090R0013 The SDCS-IOB-1 is an advanced input/output module designed for use with the ABB SDCS control system. This module provides a flexible and reliable interface for connecting various field devices to the control system, facilitating efficient data acquisition and control. The SDCS-IOB-1 is engineered for high-performance operation in industrial environments, offering precise signal processing and robust connectivity. Its modular design allows for easy integration into existing systems, making it ideal for enhancing automation and control in complex manufacturing processes.

Technical Specifications:

• Type: Input/Output Module
• Model: SDCS-IOB-1
• Functionality: Interfaces between field devices and the control system
• Number of Channels:
• Digital Inputs: 16
• Digital Outputs: 16
• Input Voltage Range: 24 V DC
• Output Voltage Range: 24 V DC
• Current Rating:
• Inputs: 10 mA per channel
• Outputs: 500 mA per channel
• Communication Interface: Compatible with ABB SDCS control system (check datasheet for details)
• Power Supply: 24 V DC
• Operating Temperature: -20°C to 60°C
• Dimensions: 150 mm x 120 mm x 90 mm (approximate)
• Weight: 0.9 kg (approximate)
• Mounting Type: DIN Rail Mount
• Protection Class: IP20
• Housing Material: Flame-Retardant Plastic
• Certifications: CE, UL
