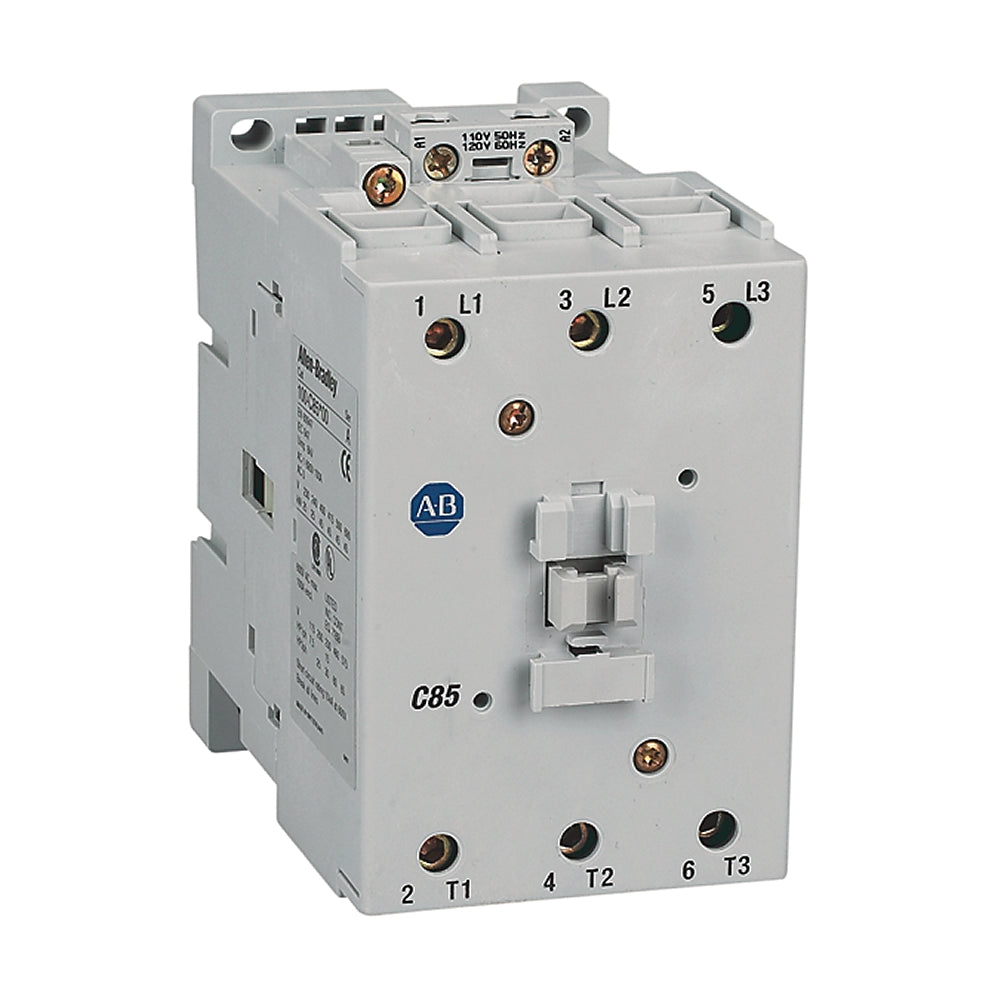

Allen-Bradley 100-C85DJ10 Contactor 24VDC Coil 100C85DJ10

Description:

The Allen-Bradley 100-C85DJ10 IEC Contactor (100C85DJ10) is used in industrial motor control systems to switch three-phase power circuits with a 24V DC coil and integrated suppression diode. Commonly installed in motor control centers, control panels, pump systems, compressors, and automated production equipment where reliable high-current switching is required. Maintenance teams, OEMs, and system integrators use this contactor for motor starter assemblies, replacement of worn contactors, panel builds, and control system upgrades in demanding industrial environments.

Applications:

The Allen-Bradley 100-C85DJ10 contactor is widely used in manufacturing plants, material handling systems, HVAC installations, and processing facilities to control motors, fans, conveyors, and other three-phase loads. The 24V DC coil with built-in diode provides surge suppression for PLC-driven control circuits, making it suitable for automation systems requiring stable and protected DC switching control.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 100-C85DJ10
• Product type: IEC contactor
• Rated operational current (AC-3): 85 A
• Coil voltage: 24 V DC
• Coil feature: Integrated suppression diode
• Number of poles: 3 main poles
• Auxiliary contacts: 1 N.O. auxiliary (10 configuration)
• Mounting: DIN rail or panel mount
• Frequency: DC coil operation
• Application environment: Industrial motor control systems

Common Replacements:

• Allen-Bradley 100-C85EJ10
• Schneider Electric LC1D80BD
• Siemens 3RT2046-1BB40
