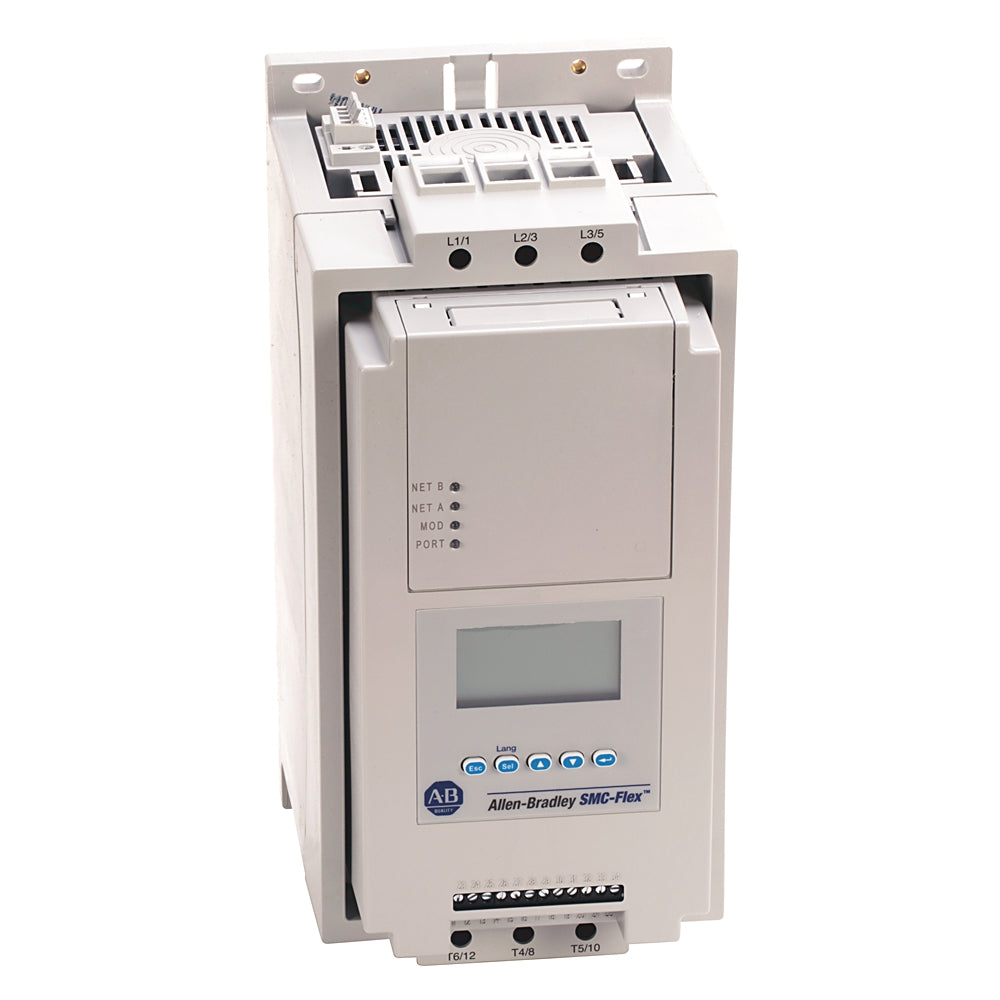

Allen-Bradley 150-F480NBD SMC-Flex Soft Starter 150F480NBD Smart Motor Controller

Description:

The Allen-Bradley 150-F480NBD SMC-Flex Soft Starter delivers exceptional control for large motor applications, offering smooth acceleration and deceleration to minimize mechanical and electrical stress. Engineered with advanced protection features and current monitoring, this unit is perfect for industrial applications like pumps, compressors, conveyors, and fans. With expandable communication options, it seamlessly integrates into modern industrial automation systems, improving operational efficiency.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Product Series: SMC-Flex
• Part Number: 150-F480NBD
• Rated Voltage: 200-600V AC
• Current Rating: 480 A
• Power Rating: Suitable for motors up to 300 kW (400 HP) at 460V
• Control Voltage: 100-240V AC (external control circuit)
• Phase Configuration: 3-phase
• Starting Modes: Soft start, soft stop, current limit start, and kickstart
• Built-in Protection: Overload, underload, short circuit, phase imbalance, and over-temperature protection
• Communication Options: Expandable to DeviceNet, EtherNet/IP, and other networks (optional modules)
• Monitoring Features: Current monitoring, fault diagnostics, and programmable alarms
• Cooling Method: Natural convection and fan-assisted cooling
• Dimensions: Approx. 450 x 250 x 300 mm (HxWxD)
• Weight: 20-25 kg (approx.)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Mounting Type: Panel-mounted
• Compliance Standards: CE, UL, cUL, RoHS compliant
