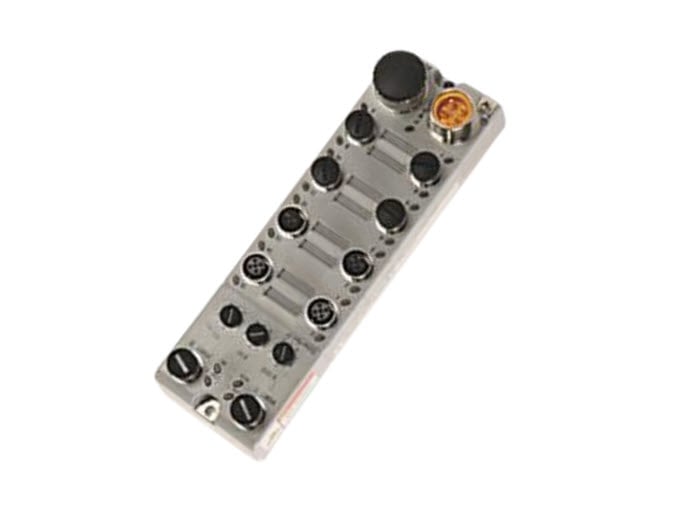

Allen Bradley 1732E-16CFGM12QCR ArmorBlock I Module 16 I 1732E16CFGM12QCR

Description:

The Allen-Bradley 1732E-16CFGM12QCR ArmorBlock I/O Configurable Module is used in Allen-Bradley ArmorBlock distributed control systems for machine-mounted digital input and output signal management. Commonly installed in conveyor systems, packaging equipment, assembly machines, robotic cells, and material handling systems requiring rugged decentralized I/O. Maintenance teams and system integrators use this module for machine repairs, retrofit projects, field I/O expansion, and replacement of faulty configurable I/O modules.

Applications:

The Allen-Bradley 1732E-16CFGM12QCR configurable I/O module is widely used in industrial automation systems where flexible field-level signal control is required. It is commonly applied for sensor monitoring, actuator control, valve switching, machine status feedback, and distributed automation tasks across manufacturing plants, warehouse systems, food processing facilities, and high-speed production lines.

Technical Specifications:

• Manufacturer Part Number (MPN): 1732E-16CFGM12QCR
• Product Type: ArmorBlock I/O Configurable Module
• Brand: Allen-Bradley
• Series: ArmorBlock I/O
• Total I/O Points: 16 configurable channels
• Channel Type: Configurable digital input / output
• Input Voltage: 24V DC nominal
• Communication Protocol: EtherNet/IP
• Network Interface: Dual Ethernet ports with DLR support
• Connector Type: M12 quick-connect connectors
• Protection Rating: IP67
• Mounting Type: On-machine / machine-mounted
• Housing Type: Sealed ArmorBlock industrial enclosure
• Status Indicators: Integrated I/O and network diagnostic LEDs
• Application: Distributed machine I/O and signal control
• Industrial Use: Flexible automation and field device connectivity

Common Replacements:

• Allen-Bradley 1732E-16CFGM12P5R ArmorBlock Configurable Module
• Allen-Bradley 1732E-IB16M12R ArmorBlock Digital Input Module
• Allen-Bradley 1732E-OB8M12R ArmorBlock Digital Output Module
