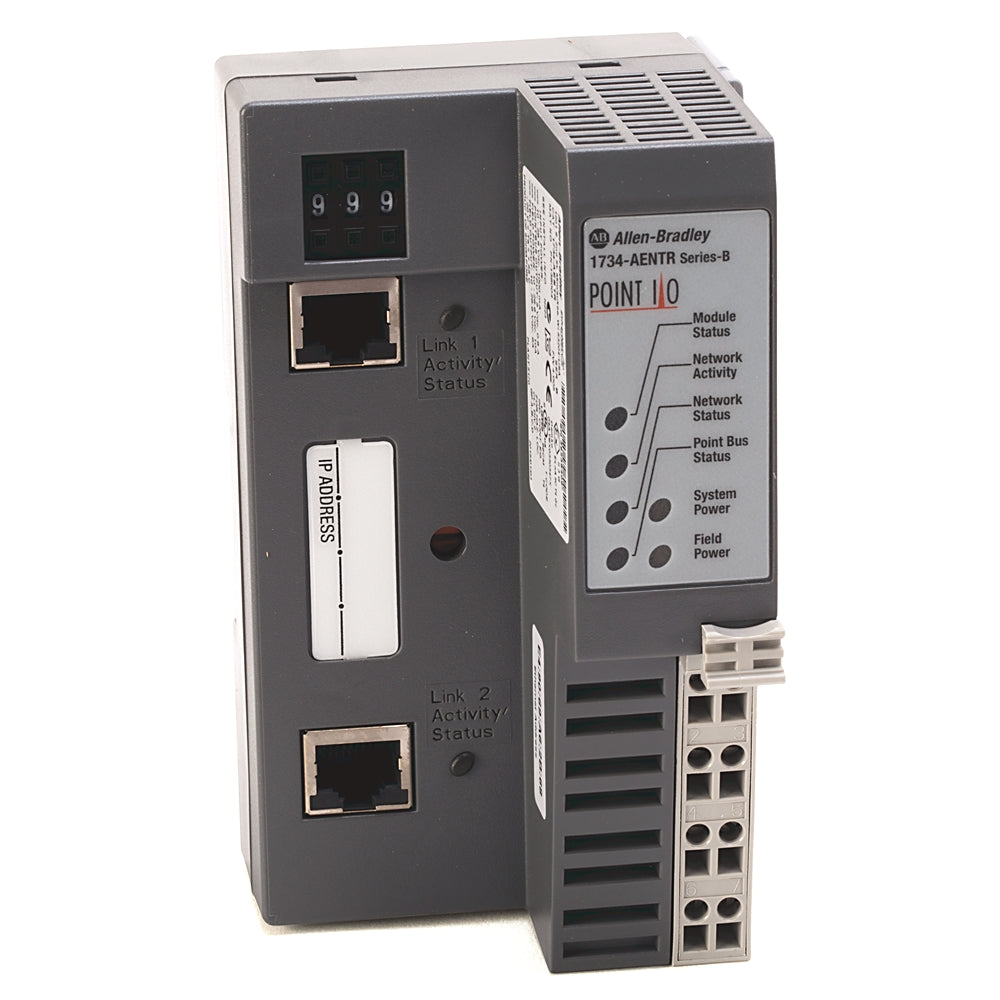

Allen-Bradley 1734-AENTR Ethernet Adapter POINT I/O Module 1734AENTR

Description:

The Allen-Bradley 1734-AENTR is a high-performance Ethernet/IP communication interface module designed for the FLEX I/O system. This module enables seamless integration of FLEX I/O modules with Ethernet/IP networks, facilitating reliable data exchange and control over industrial networks. The 1734-AENTR supports advanced network management features, high-speed data transfer, and easy configuration, making it ideal for applications that require robust and scalable network connectivity.

Technical Specifications:

• Communication Protocol: Ethernet/IP
• Ports: 2x Ethernet Ports (RJ45 connectors) for network redundancy
• Data Rate: 10/100 Mbps
• Network Support: Redundant Ethernet networks
• Backplane Current Draw: 150 mA at 5V DC
• Isolation Voltage: 1500V (continuous)
• Dimensions: 2.8 x 3.4 x 2.5 in (71 x 86 x 63 mm)
• Weight: 0.8 kg (1.8 lbs)
• Operating Temperature: 0 to 55 °C (32 to 131 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Humidity: 5% to 95% non-condensing
• Certifications: UL, CE, and cULus certified
