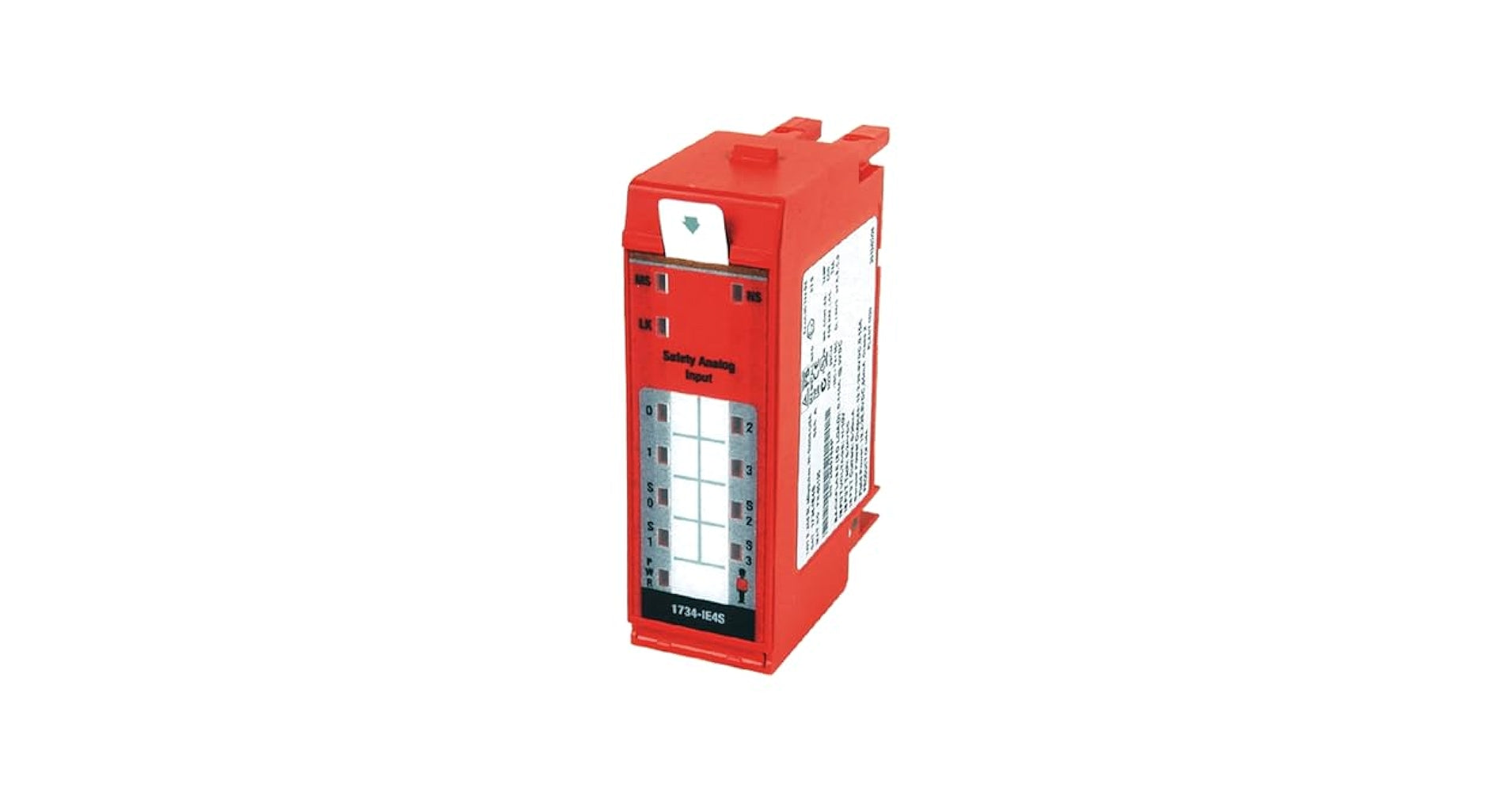

Allen-Bradley 1734-IE4S POINT Guard I/O Safety 4-Channel Analog Input Sealed 1734IE4S

Description:

1734IE4S SAFETY INPUT MODULE ANALOG 4 SINGLE-ENDED INPUTS POINTBUS +/-10V VOLTAGE INPUT 0-24 VDC TACH INPUT 0-20 MA CURRENT INPUT The Allen-Bradley 1734-IE4S is a compact and reliable analog input module from the POINT I/O series, designed for use with Rockwell Automation's I/O systems. This module provides 4 channels of analog inputs, supporting both voltage and current signal types. It enables precise measurement and monitoring of analog signals in industrial automation applications, offering high accuracy and flexibility in data acquisition.

Technical Specifications:

• Input Channels: 4
• Input Types: Voltage (0-10V), Current (4-20mA)
• Input Range:
• Voltage: 0 to 10V
• Current: 4 to 20mA
• Input Resolution: 16-bit
• Input Accuracy: ±0.1% of full scale (typical)
• Isolation: 1500V DC between input channels and backplane
• Operating Temperature Range: 0 to 60°C (32 to 140°F)
• Dimensions (H x W x D): Approximately 82.6 mm x 36 mm x 65 mm (3.25 in x 1.42 in x 2.56 in)
• Mounting Type: DIN Rail
• Status Indicators: LED indicators for input status and diagnostics
