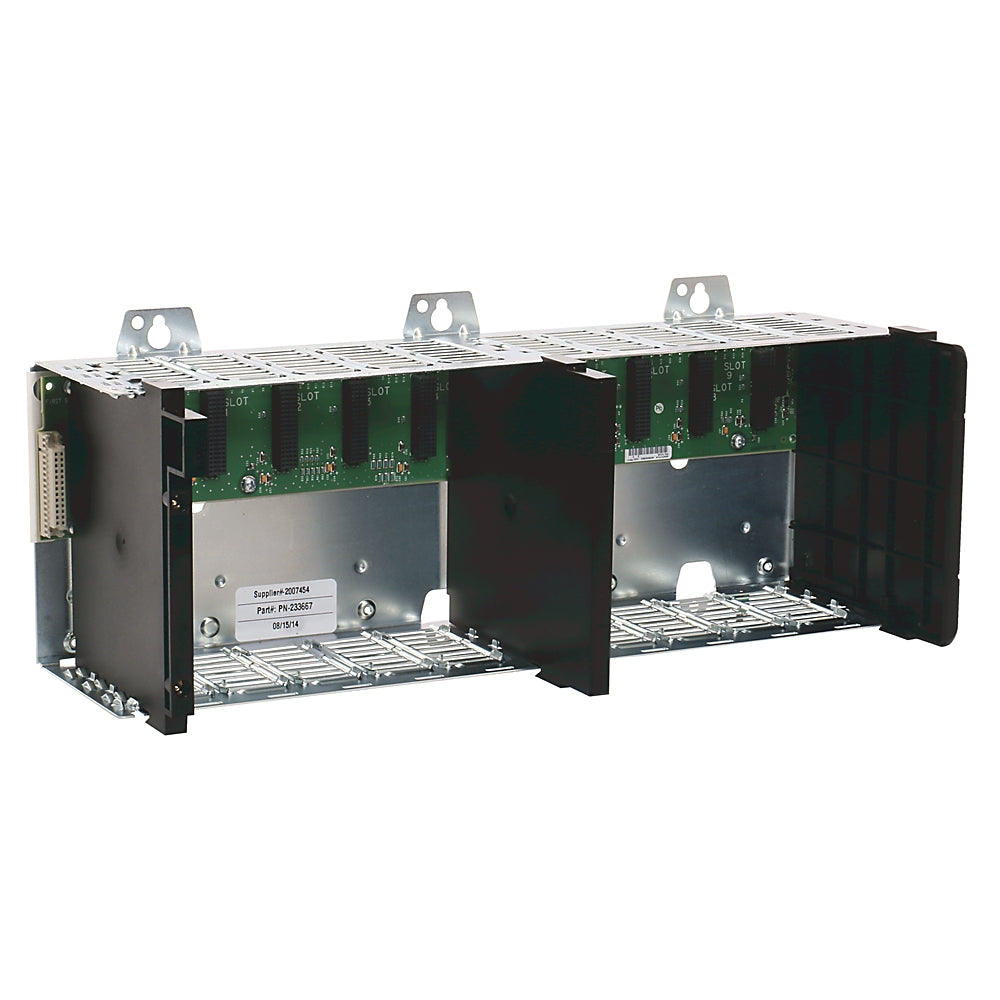

Allen-Bradley 1756-A10 10 1756A10

DESCRIPTION
The Allen-Bradley 1756-A10 is a 10-slot ControlLogix chassis designed to house and interconnect I/O modules, communication modules, and processors in a ControlLogix control system. This chassis acts as the structural and electrical backbone for the system, providing high-speed backplane communication between modules. Its robust design ensures dependable performance in industrial environments, making it suitable for manufacturing, process control, and high-speed automation systems.

TECHNICAL SPECIFICATIONS
Manufacturer: Allen-Bradley (Rockwell Automation)
Series: ControlLogix
Model Number: 1756-A10
Chassis Type: Standard
Number of Slots: 10
Backplane Current (at 1.2V): 15 A
Backplane Current (at 3.3V): 4 A
Backplane Current (at 5.1V): 15 A
Backplane Current (at 24V): 2.8 A
Power Supply: Requires separate 1756 series power supply (e.g., 1756-PA72, 1756-PB75)
Mounting: Panel or rack mount
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Enclosure Type Rating: Open type
Dimensions (HxWxD): Approx. 5.71 x 17.48 x 5.71 in (145 x 444 x 145 mm)
Weight: Approx. 2.5 kg (5.5 lbs)
