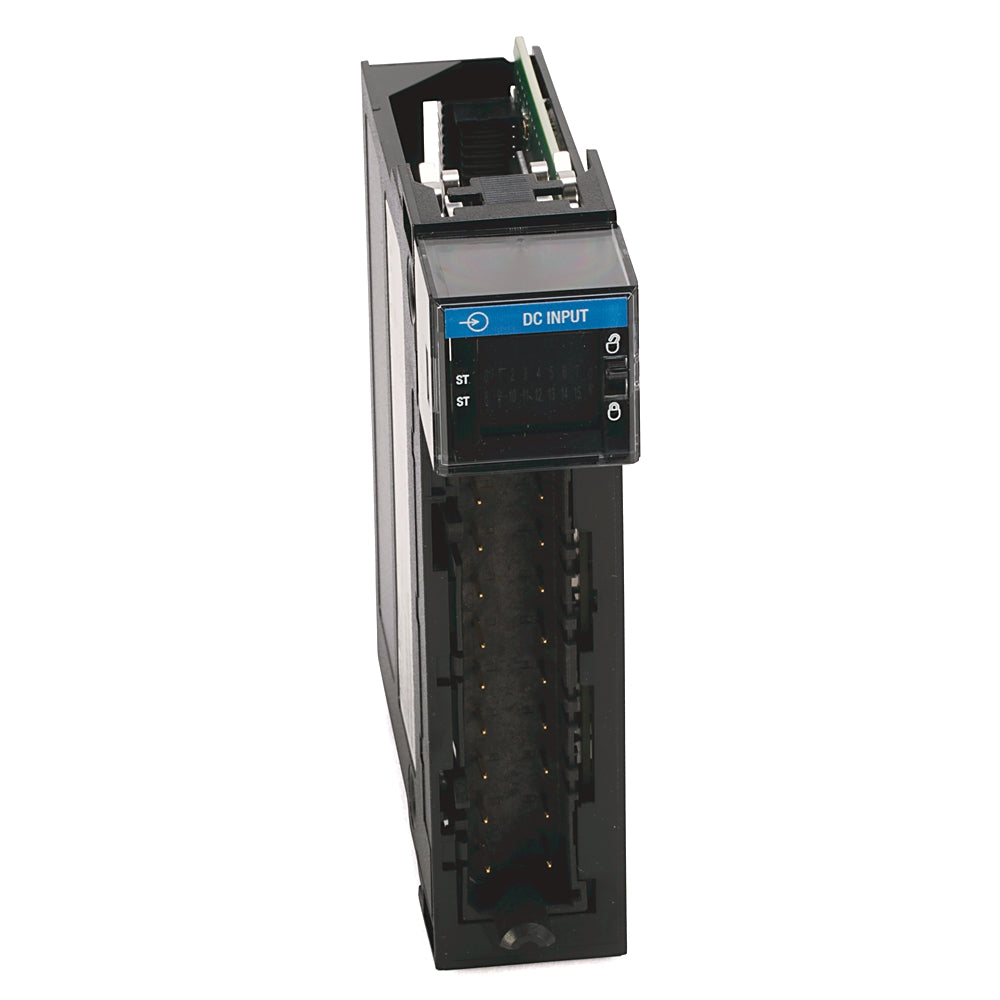

Allen-Bradley 1756-IB16 ControlLogix DC INPUT Module 16 Pt 24VDC

Description:

The Allen‑Bradley 1756‑IB16 ControlLogix DC input module is used in industrial automation systems to acquire discrete 24 VDC field signals and interface them with a ControlLogix programmable controller. It is commonly installed in 1756 ControlLogix chassis and control cabinets to read input statuses from sensors, switches, and field devices. Maintenance teams and system integrators use this module for I/O expansion, system upgrades, and replacement of failed input modules.

Applications:

The Allen‑Bradley 1756‑IB16 module is widely used in factory and process automation environments requiring reliable acquisition of discrete signals. It is commonly found in conveyor systems, packaging machinery, assembly lines, material handling equipment, and safety interlock systems where 24 VDC inputs from proximity sensors, pushbuttons, limit switches, and other field devices provide status data to PLC logic for monitoring and control.

Technical Specifications:

• Model: 1756‑IB16
• Module type: Digital input interface for ControlLogix
• Number of input points: 16 discrete inputs
• Input voltage: 24 VDC
• Input type: Sinking/sourcing compatible
• Connection: Screw terminal field wiring
• Mounting: 1756 ControlLogix chassis slot
• Input current: Typical industrial logic levels
• Indicators: Individual input status LEDs
• Response time: Fast industrial logic response
• Protection: Transient suppression and short‑circuit protection (platform dependent)
• Compatibility: Allen‑Bradley ControlLogix PLC family
• Operating temperature: Industrial range

Common Replacements:

• Allen‑Bradley 1756‑IB32 (32‑point input)
• Allen‑Bradley 1734‑IB16 (Flex I/O input module)
• Siemens 6ES7321‑1BL00‑0AA0 (SM321 input module)
