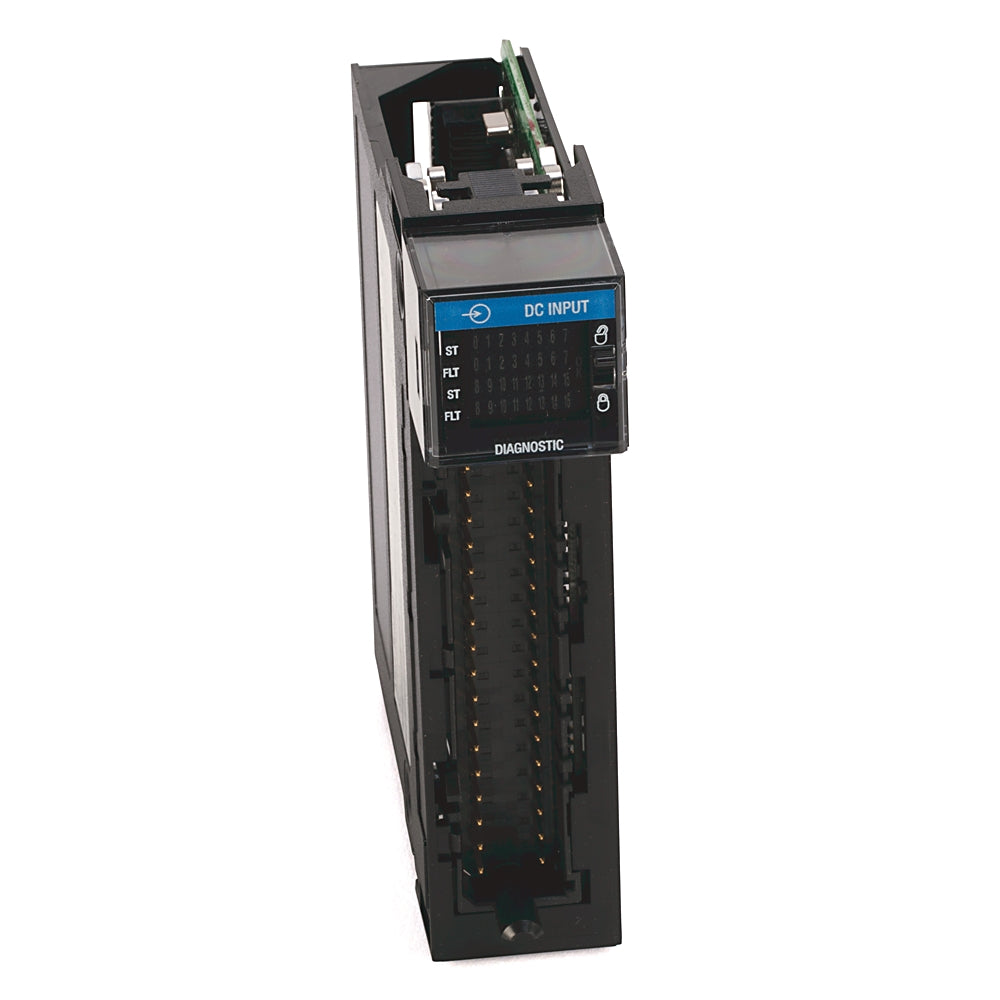

Allen Bradley 1756-IB16D Serie A Diagtic Input Module 1756IB16D

Description:

The Allen Bradley 1756‑IB16D Series A diagnostic input module is used in industrial automation systems to acquire discrete 24 VDC field signals and provide enhanced diagnostic feedback to a ControlLogix PLC. It is commonly installed in 1756 ControlLogix chassis and control cabinets to read input statuses from sensors and switches while reporting detailed system diagnostics. Maintenance teams and system integrators use this module for I/O expansion, system monitoring, and replacement of failed or legacy input modules.

Applications:

The Allen Bradley 1756‑IB16D module is widely used in factory and process automation environments requiring reliable discrete signal acquisition with diagnostic capabilities. It is commonly found in conveyor systems, packaging machinery, assembly lines, material handling equipment, and safety interlock systems where 24 VDC inputs from proximity sensors, pushbuttons, and limit switches feed PLC logic and support advanced diagnostics for predictive maintenance.

Technical Specifications:

• Model: 1756‑IB16D Series A
• Module type: Diagnostic digital input interface for ControlLogix
• Number of input points: 16 discrete inputs
• Input voltage: 24 VDC
• Input type: Sinking/sourcing compatible
• Connection: Screw terminal field wiring
• Mounting: 1756 ControlLogix chassis slot
• Diagnostic support: Detailed input health and status reporting
• Indicators: Individual input and module status LEDs
• Input current: Typical industrial logic levels
• Response time: Fast industrial logic response
• Protection: Transient suppression and short‑circuit protection (platform dependent)
• Compatibility: Allen Bradley ControlLogix PLC family
• Operating temperature: Industrial range

Common Replacements:

• Allen Bradley 1756‑IB16D Series B
• Allen Bradley 1756‑IB32D (32‑point diagnostic input)
• Allen Bradley 1734‑IB16 (Flex I/O diagnostic input)
