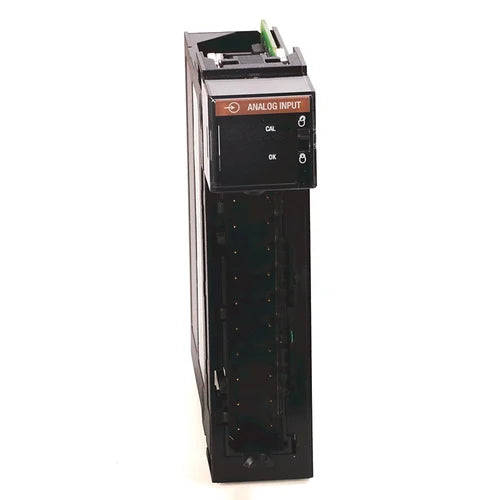

Allen-Bradley 1756-IF6I ControlLogix 6 Point Isolated A/I Module

Description:

The Allen-Bradley 1756-IF6I ControlLogix 6-Point Isolated Analog Input Module is used in industrial automation systems to provide multiple isolated analog input channels for precise signal acquisition and noise-free measurement of process variables. Commonly installed in ControlLogix I/O racks and distributed control systems where accurate analog data from sensors and transmitters is needed for process feedback, control loops, and system logic. Maintenance teams and system integrators use this module for I/O expansions, retrofit upgrades, replacement of failed analog input modules, and enhancement of analog signal quality in automated systems.

Applications:

The Allen-Bradley 1756-IF6I analog input module is commonly used in industrial environments including manufacturing production lines, chemical processing equipment, HVAC and building automation systems, water and wastewater treatment facilities, material handling systems, packaging and bottling machinery, and energy management systems where dependable isolated analog inputs improve process measurement, control accuracy, and system responsiveness.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 1756-IF6I
• Product Type: ControlLogix 6-Point Isolated Analog Input Module
• Input Channels: 6 isolated analog inputs
• Input Signal Types: Voltage and/or current analog inputs (model dependent)
• Isolation: Channel and system isolation for noise immunity
• Resolution: High-accuracy analog-to-digital conversion
• Compatibility: Rockwell Automation ControlLogix I/O systems
• Interface: Backplane connection to ControlLogix chassis
• Mounting Type: Rack mounted within ControlLogix I/O rack
• Power Supply: Supplied via ControlLogix backplane power bus
• Function: Provides isolated analog signal acquisition for process feedback
• Application Category: Industrial analog monitoring and control
• Operating Temperature Range: Industrial-rated conditions
• Protection Rating: Installed within control enclosure

Common Replacements:

• Allen-Bradley 1756-IF8 ControlLogix 8-Point Analog Input Module
• Allen-Bradley 1769-IF8 CompactLogix 8-Point Analog Input Module
• Allen-Bradley 1734-IE8S POINT I/O 8-Point Analog Input Module
