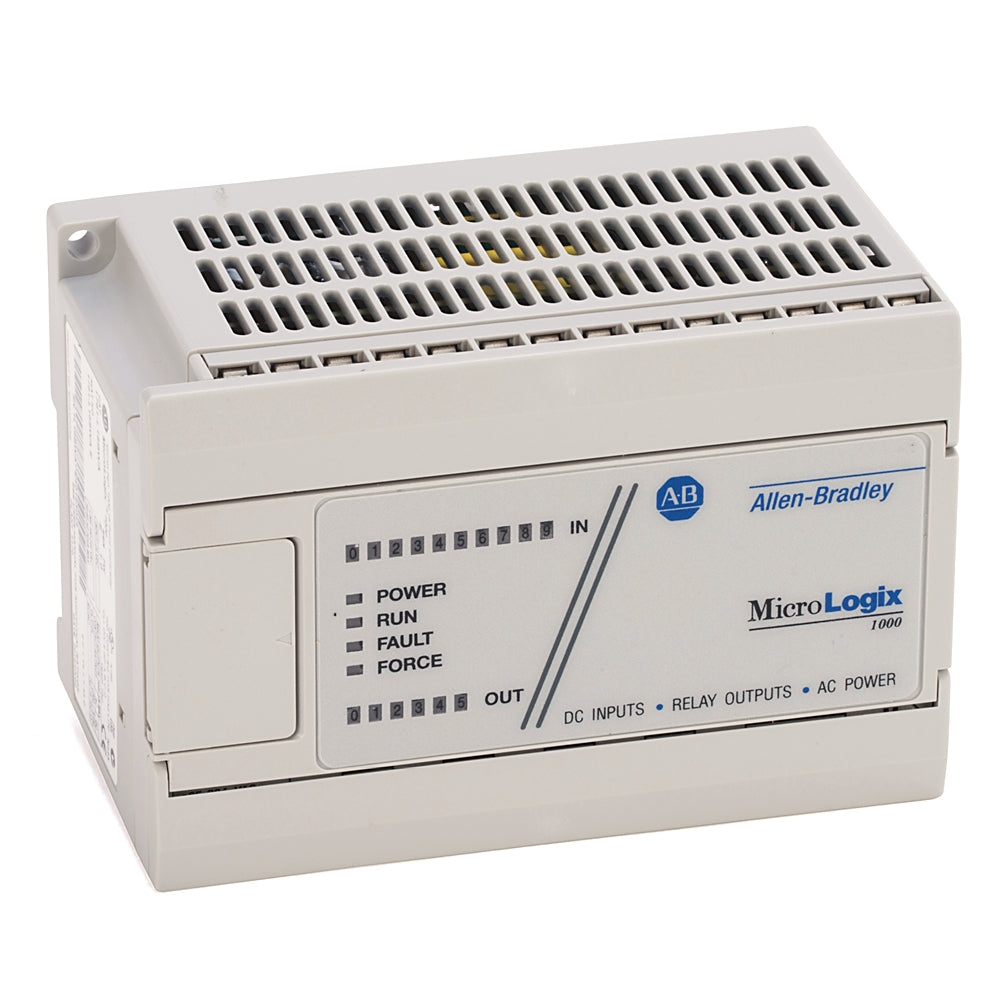

Allen Bradley 1761-L16BWA MicrolLogix 1000 16 Point Controller 1761L16BWA

Description:

The Allen-Bradley 1761-L16BWA MicroLogix 1000 Controller is used in industrial automation systems for compact machine control and logic processing. Commonly installed in small machines, conveyors, packaging equipment, and standalone automation systems. Maintenance teams and system integrators use this part for machine repairs, control retrofits, and replacement of legacy PLC controllers.

Applications:

The Allen-Bradley 1761-L16BWA controller is widely used in industrial environments requiring reliable compact PLC control for discrete automation tasks. It is commonly integrated into small production lines, material handling systems, pump controls, and OEM machinery where dependable logic control, built-in I/O, and cost-effective automation are essential.

Technical Specifications:

• Manufacturer Part Number (MPN): 1761-L16BWA
• Brand: Allen-Bradley
• Product Type: Compact PLC Controller
• Series: MicroLogix 1000
• Total I/O Points: 16 points
• Digital Inputs: 10 inputs
• Digital Outputs: 6 relay outputs
• Input Voltage: 120/240V AC
• Output Type: Relay
• Program Memory: 1K user words
• Communication Port: RS-232 serial
• Mounting Type: DIN rail or panel mount
• Operating Temperature: 0°C to +55°C
• Protection Rating: IP20
• Compliance Standards: CE, UL, CSA

Common Replacements:

• Allen-Bradley 1761-L20BWA MicroLogix Controller
• Allen-Bradley 1763-L16BWA MicroLogix 1100
• Siemens LOGO! 12/24 PLC
