Allen-Bradley 1761-L20AWA-5A Programmable Logic Controller REV.B

Description:

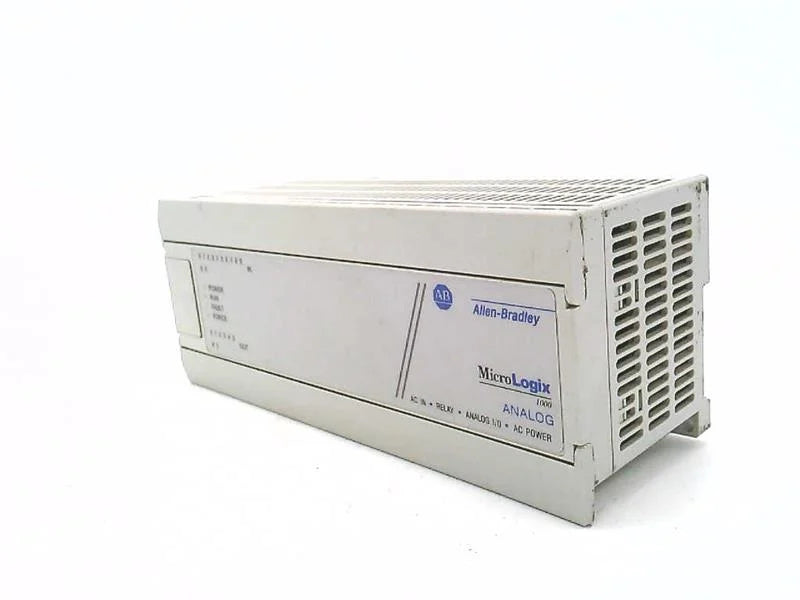

1761L20AWA5A MICROLOGIX 1000 120/240 VAC POWER (12) 120 VAC DIGITAL INPUTS (4) ANALOG INPUTS (8) RELAY OUTPUTS (1) ANALOG OUTPUT The Allen-Bradley 1761-L20AWA-5A Series A, Revision B is a versatile and compact programmable logic controller (PLC) designed for small to medium-scale automation applications. This model belongs to the MicroLogix 1200 series and offers built-in features including discrete inputs and outputs, analog inputs, and relay outputs, making it suitable for a variety of control and monitoring tasks. The 1761-L20AWA-5A is engineered for ease of use, providing reliable performance with its user-friendly programming environment and integrated communication capabilities. It is ideal for applications requiring a flexible, cost-effective solution for control and automation.

Technical Specifications:

• Model: 1761-L20AWA-5A
• Series: A
• Revision: B
• Type: Programmable Logic Controller (PLC)
• Input Voltage: 24V DC (for digital inputs)
• Input/Output Configuration:
• Discrete Inputs: 10 (24V DC)
• Discrete Outputs: 6 (Relay)
• Analog Inputs: 2 (0-10V DC or 4-20mA)
• Communication Ports:
• RS-232 Port: For programming and communication
• RS-485 Port: For network communication (usually available with specific modules)
• Memory:
• Program Memory: Typically sufficient for small to medium-sized applications (verify specific memory capacity)
• Mounting Type: DIN Rail or Panel Mount
• Dimensions: Compact size (verify specific dimensions based on model)
• Protection Rating: IP20 (verify specific protection rating as needed)
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Certification: UL, CE (verify specific certifications as needed)
