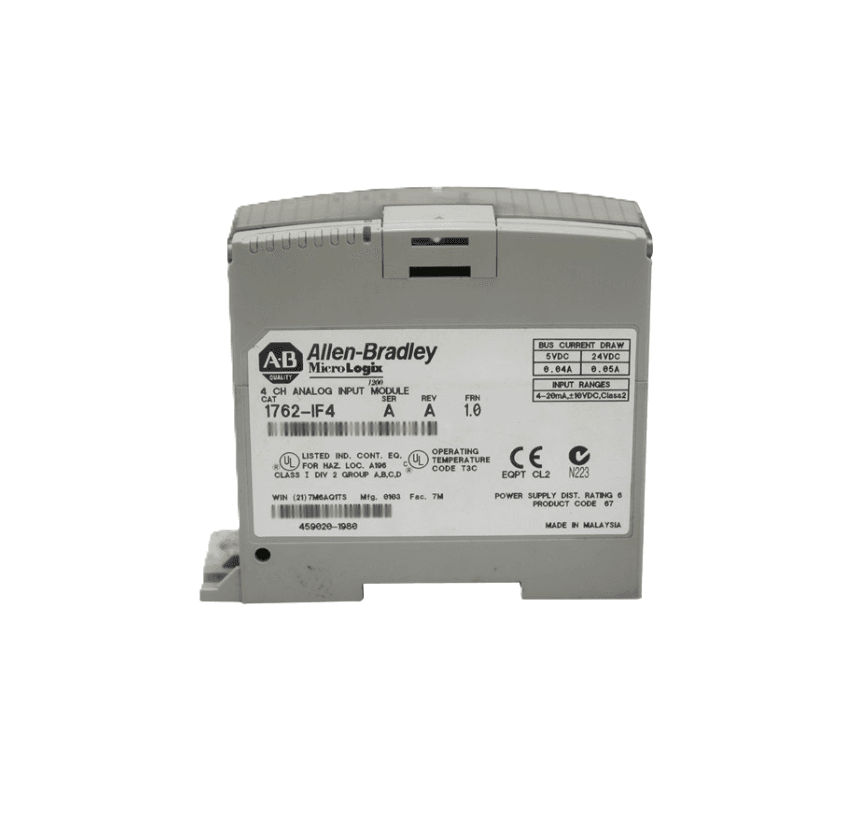

Allen-Bradley 1762-IF4 1762IF4

DESCRIPTION

The Allen-Bradley 1762-IF4 is a 4-channel analog input module designed for use with MicroLogix 1100, 1200, and 1400 PLCs. It provides flexible input signal support for both voltage and current ranges and is ideal for applications requiring analog sensing such as temperature, pressure, flow, or level measurement. The module integrates seamlessly into the MicroLogix system using the 1762 backplane and supports real-time analog data acquisition.

TECHNICAL SPECIFICATIONS

Catalog Number: 1762-IF4
Series: MicroLogix 1200/1400 I/O Expansion
Analog Input Channels: 4
Supported Input Types:
– Voltage: ±10V, 0–10V
– Current: 4–20 mA, 0–20 mA
Resolution: 14-bit
Input Impedance:
– Voltage: >1 MΩ
– Current: 250 Ω
Accuracy: ±0.5% full scale @ 25°C
Conversion Rate: 2.5 ms/channel
Data Format: Scaled integer (programmable in RSLogix 500)
Power Supply: 24V DC (draws power from base unit)
Isolation: Channel-to-backplane isolation
Mounting: DIN rail or panel mount
Operating Temperature: 0 to 55°C (32 to 131°F)
