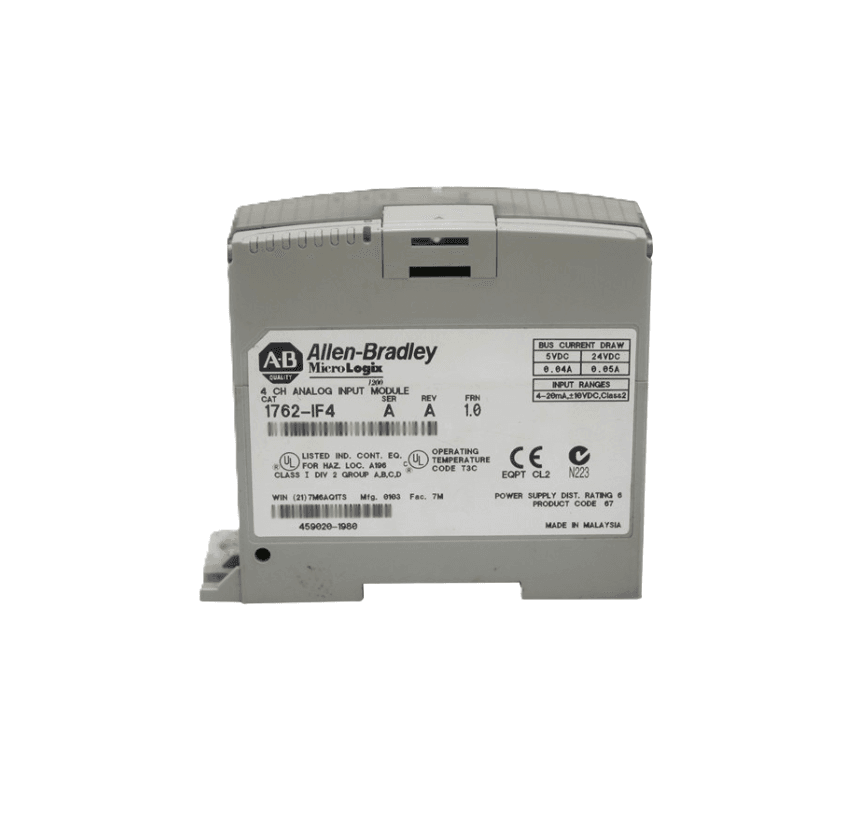

Allen-Bradley 1762-IF4 MicroLogix 4Point Analog Input Module 1762IF4

Description:

The Allen-Bradley 1762-IF4 MicroLogix 4-Point Analog Input Module is an analog input module used in industrial control systems to expand analog sensing capability for MicroLogix PLC platforms. Designed to provide four independent analog input channels, this module enables accurate measurement of process variables such as temperature, pressure, and flow signals in automation systems. Maintenance teams, OEM machine builders, and system integrators use this module for system upgrades, capacity expansion, and replacement of existing analog input interfaces in compact control architectures.

Applications:

The 1762-IF4 analog input module is commonly applied in industrial automation applications requiring multiple analog signal measurements. Typical installations include HVAC control systems, water and wastewater processing equipment, batching and dosing systems, packaging machinery, and machine automation panels that demand real-time analog data acquisition from sensors and transducers. Its integration with the MicroLogix controller family makes it suitable for standalone machines and small-scale automated systems.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 1762-IF4
• Series: MicroLogix I/O
• Number of Channels: 4 analog inputs
• Input Type: Analog voltage or current (model dependent)
• Supported Signals: 0-10 V and 4-20 mA (application dependent)
• Resolution: High-resolution ADC for accurate measurement (per datasheet)
• Mounting Type: Module plug-in for MicroLogix I/O base
• Compatible Controllers: Allen-Bradley MicroLogix series
• Communication Interface: MicroLogix I/O bus
• Operating Temperature: Standard industrial range (typically 0°C to 55°C)

Common Replacements:

• Allen-Bradley 1769-IF4
• Allen-Bradley 2080-IF4
• Siemens 6ES7 331-7KF02-0AB0
