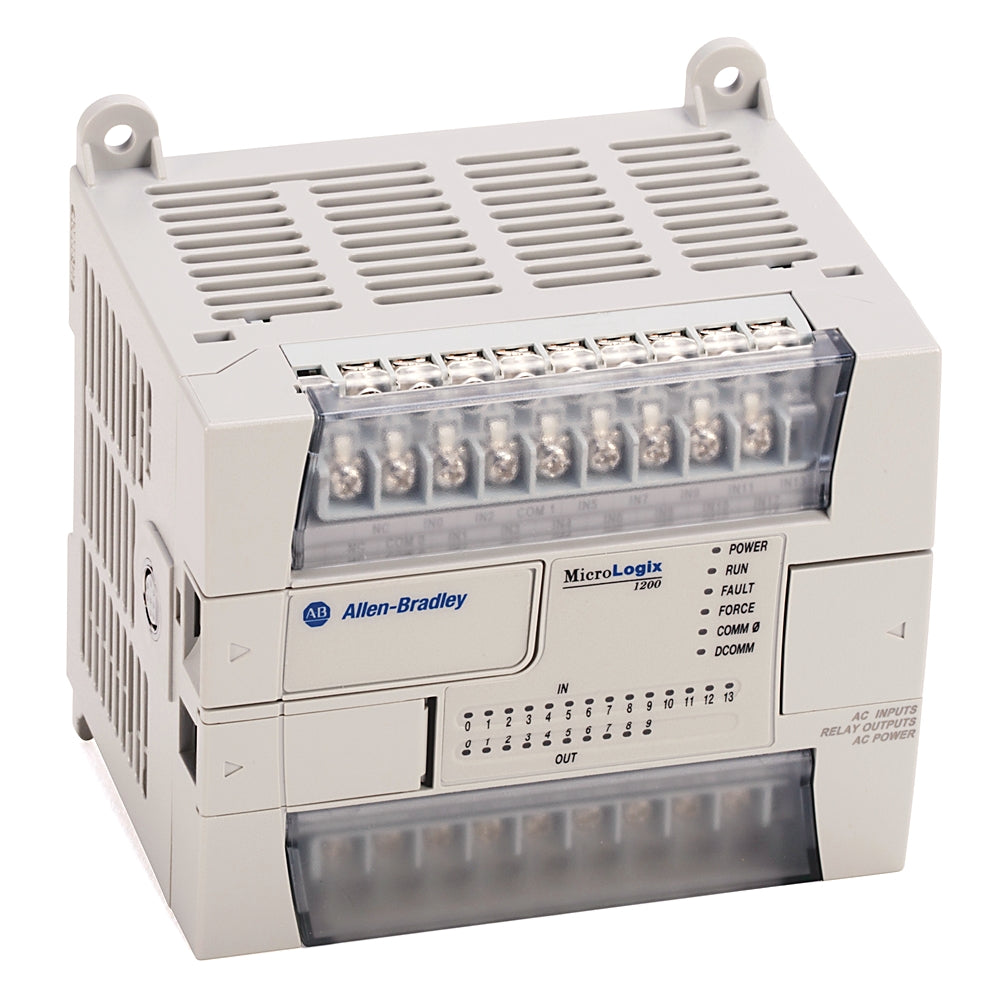

Allen-Bradley 1762-L24BWA MicroLogix 1200 24 Point Controller 1762L24BWA

Description:

The Allen-Bradley 1762-L24BWA MicroLogix 1200 24 Point Controller is used in compact PLC automation systems to provide programmable logic control with integrated digital inputs and relay outputs for small industrial control applications. It features a 24-point I/O configuration designed to support reliable machine operation, process control, and system monitoring within standalone or distributed automation setups. Commonly installed in packaging equipment, conveyor and material handling systems, pump and motor control panels, and small production machinery, this controller delivers dependable performance for routine industrial operations. Maintenance teams, OEM machine builders, and system integrators use this controller for machine repairs, control system upgrades, automation retrofits, and replacement of existing MicroLogix PLC units.

Applications:

The Allen-Bradley 1762-L24BWA controller is commonly used in small industrial automation systems that require reliable programmable control with integrated digital I/O. Typical applications include packaging and labeling machines, conveyor and material handling equipment, pump and motor control systems, and small automated production machines where compact PLC control is required for monitoring and managing machine operations.

Technical Specifications:

• Manufacturer Part Number (MPN): 1762-L24BWA
• Product Type: Programmable Logic Controller (PLC), Base Unit
• Series: MicroLogix 1200
• Total I/O Points: 24
• Digital Inputs: 14
• Digital Outputs: 10 relay outputs
• Input Voltage: 120/240 VAC
• Output Type: Relay
• Program Memory: 6 KB
• Communication Port: RS-232 Serial Port
• Expansion Capability: Supports MicroLogix 1200 expansion I/O modules
• Mounting Type: DIN Rail or Panel Mount
• Operating Temperature: 0 to 55 °C (32 to 131 °F)

Common Replacements:

• Allen-Bradley 1762-L24BXB
• Allen-Bradley 1762-L40BWA
• Allen-Bradley 1766-L32BWAA
