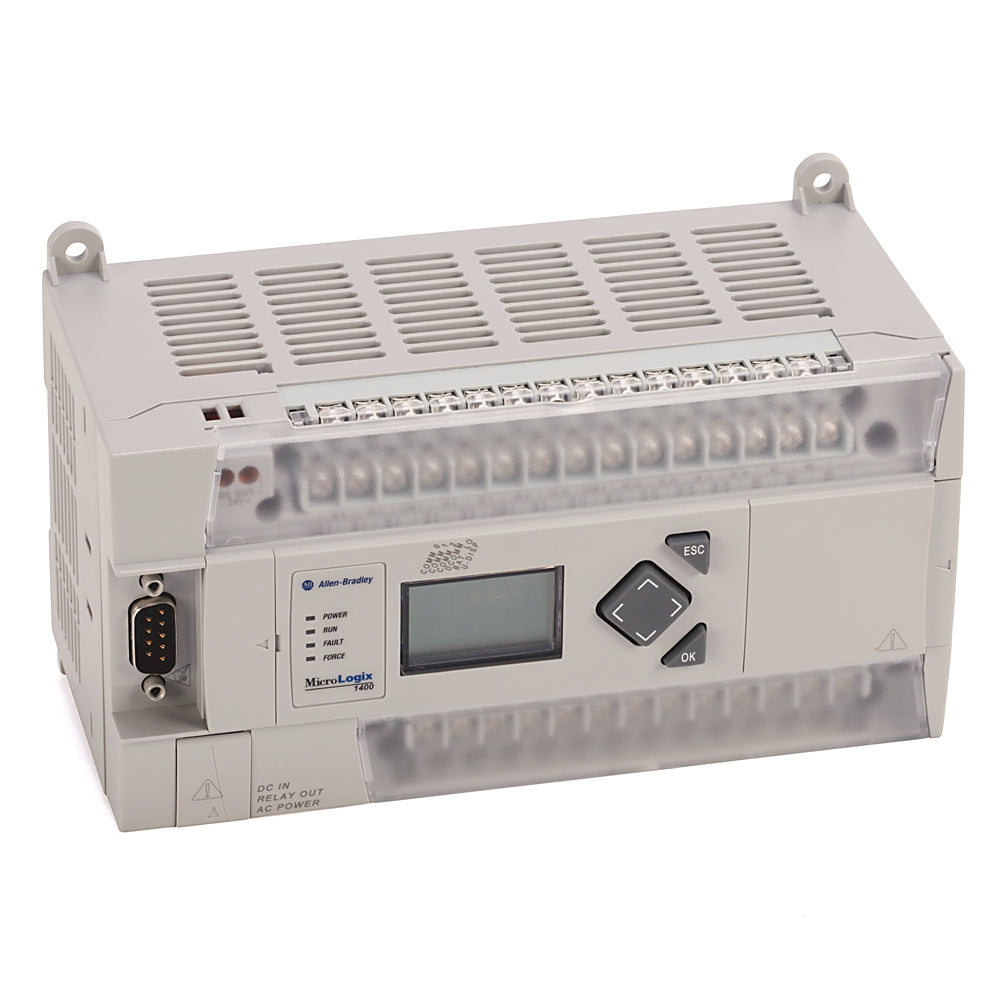

Allen-Bradley 1766-L32BWA 1400 32 Point Controller 1766L32BWA

Description:

The Allen-Bradley 1766-L32BWA MicroLogix 1400 32 Point Controller is used in compact PLC automation systems to provide discrete control and integrated communication for small to mid-sized industrial applications. Commonly installed in packaging equipment, conveyor systems, pump and compressor control panels, and water treatment systems, it delivers reliable machine-level control with built-in I/O and networking capability. Maintenance teams and system integrators use this controller for equipment replacement, panel retrofits, system upgrades, and automation expansion within MicroLogix-based control architectures.

Applications:

The 1766-L32BWA controller is applied in material handling systems, bottling and labeling machines, HVAC control panels, OEM production machinery, and light process automation where dependable discrete control and Ethernet communication are required for monitoring and operational management.

Technical Specifications:

• Manufacturer Part Number (MPN): 1766-L32BWA
• Product Type: Programmable Logic Controller (PLC)
• Series: MicroLogix 1400
• Total I/O Points: 32
• Digital Inputs: 20 (24V DC)
• Digital Outputs: 12 (Relay)
• Controller Power Supply: 24V DC
• Communication Ports: Ethernet/IP, RS-232/RS-485
• Embedded Web Server: Yes
• High-Speed Counters: 6
• Expansion Capability: Supports 1762 expansion I/O modules
• Mounting: DIN Rail or Panel Mount
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Allen-Bradley 1766-L32BWAA
• Allen-Bradley 1766-L32BXBA
• Allen-Bradley 2080-LC30-16QWB
