Allen-Bradley

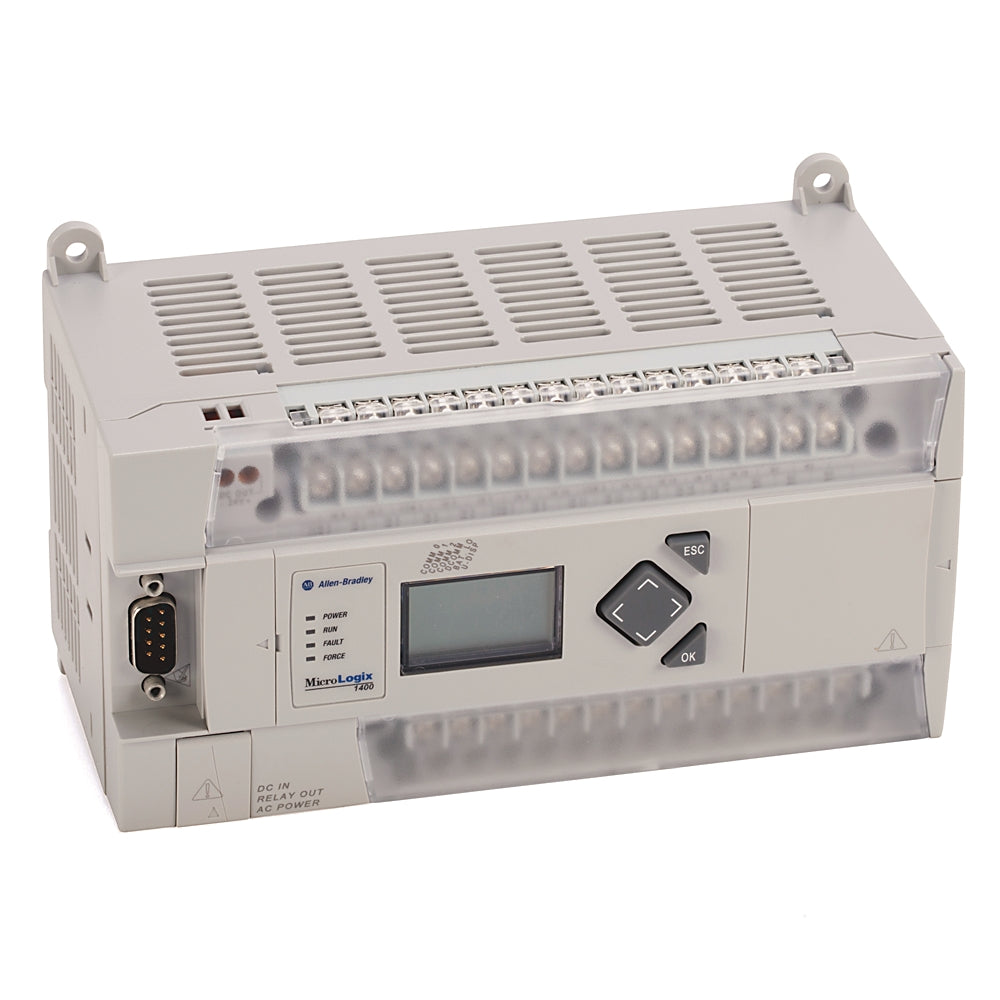

Allen-Bradley 1766-L32BXB MicroLogix 1400 32 Point Controller 1766L32BXB
Allen-Bradley 1766-L32BXB MicroLogix 1400 32 Point Controller 1766L32BXB
Couldn't load pickup availability





Description:
1766L32BXB CONTROLLER MICROLOGIX 1400 20 INPUTS 12 FAST 24 VDC INPUTS 8 NORMAL 24 VDC INPUTS 6 RELAY OUTPUTS 3 FAST 24 VDC OUTPUTS 3 NORMAL 24 VDC OUTPUTS 24 VDC POWER The Allen-Bradley 1766-L32BXB is a compact and versatile programmable logic controller (PLC) from the MicroLogix 1400 series, designed for a wide range of automation applications. This PLC features a built-in processor with 32 digital I/O points and enhanced communication capabilities, including an integrated Ethernet port for network connectivity. Its compact size and comprehensive functionality make it an ideal choice for small to medium-sized control tasks requiring reliable and efficient automation.
Technical Specifications:
- Processor Type: Embedded MicroLogix processor
- I/O Configuration: 32 total I/O points (16 digital inputs, 16 digital outputs)
- Program Memory: 10 KB
- Data Memory: 10 KB
- Communication Ports:
- 1 Ethernet port (10/100 Mbps)
- 1 RS-232 port (for programming and diagnostics)
- Power Supply: 24V DC
- Operating Temperature Range: 0 to 60°C (32 to 140°F)
- Dimensions (H x W x D): Approximately 118 mm x 85 mm x 90 mm (4.65 in x 3.35 in x 3.54 in)
- Mounting Type: DIN Rail
- Status Indicators: LED indicators for power, communication, and I/O status
