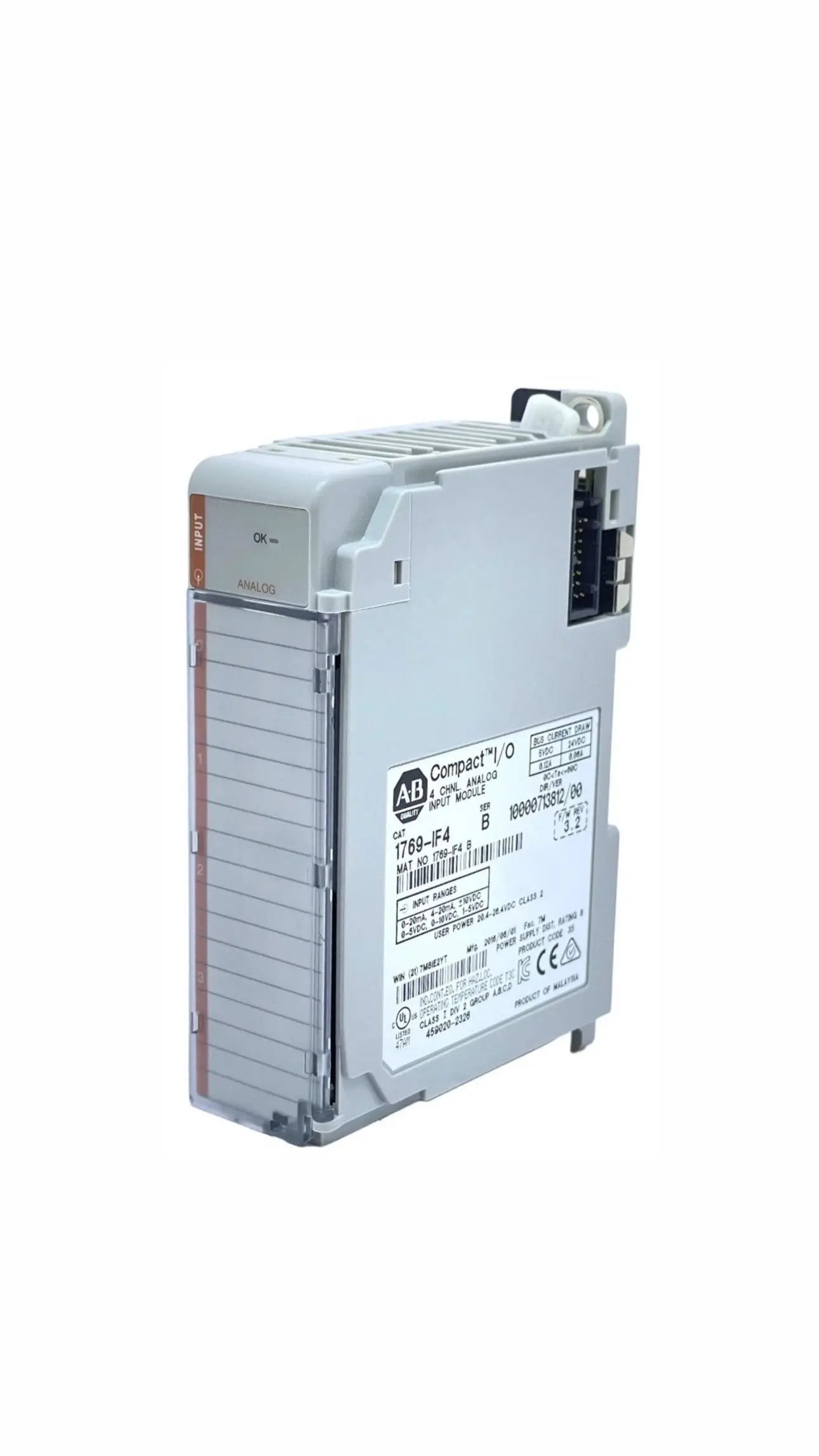

ALLEN BRADLEY 1769-IF4 ANALOG PLC MODULE 1769IF4

Description:

The Allen Bradley 1769-IF4 Analog Input Module is used in CompactLogix and MicroLogix 1500 systems for converting analog signals into digital data for processing. Commonly installed in 1769 Compact I/O chassis within industrial automation systems for monitoring sensors and field instruments. Maintenance teams, OEMs, and system integrators use this module for system expansion, retrofit, or replacement of analog input modules.

Applications:

The Allen Bradley 1769-IF4 is designed for industrial process monitoring applications requiring accurate acquisition of analog signals such as pressure, temperature, flow, and level. It is widely used in manufacturing plants, water and wastewater systems, HVAC applications, and process industries where sensors transmit voltage or current signals (e.g., 4–20 mA or ±10 V). With support for both single-ended and differential inputs, it enables flexible integration with various field devices and ensures reliable data collection for PLC-based control systems.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 1769-IF4
• Product Type: Analog Input Module
• Series: 1769 Compact I/O
• Number of Inputs: 4 channels
• Input Type: Voltage and current (±10V, 0–10V, 0–5V, 1–5V, 0–20 mA, 4–20 mA)
• Input Configuration: Differential or single-ended
• Resolution: Up to 16-bit
• Power Supply: 24V DC (external)
• Backplane Current: 120 mA @ 5V DC, 60 mA @ 24V DC
• Operating Temperature: 0 to 60°C
• Mounting: DIN rail or panel mount
• Dimensions: Approx. 118 x 35 x 87 mm
• Compatibility: CompactLogix and MicroLogix 1500 systems
• Lifecycle Status: Active Mature

Common Replacements:

• Allen-Bradley 1769-IF4I
• Allen-Bradley 1762-IF4
• Allen-Bradley 1794-IF4I
