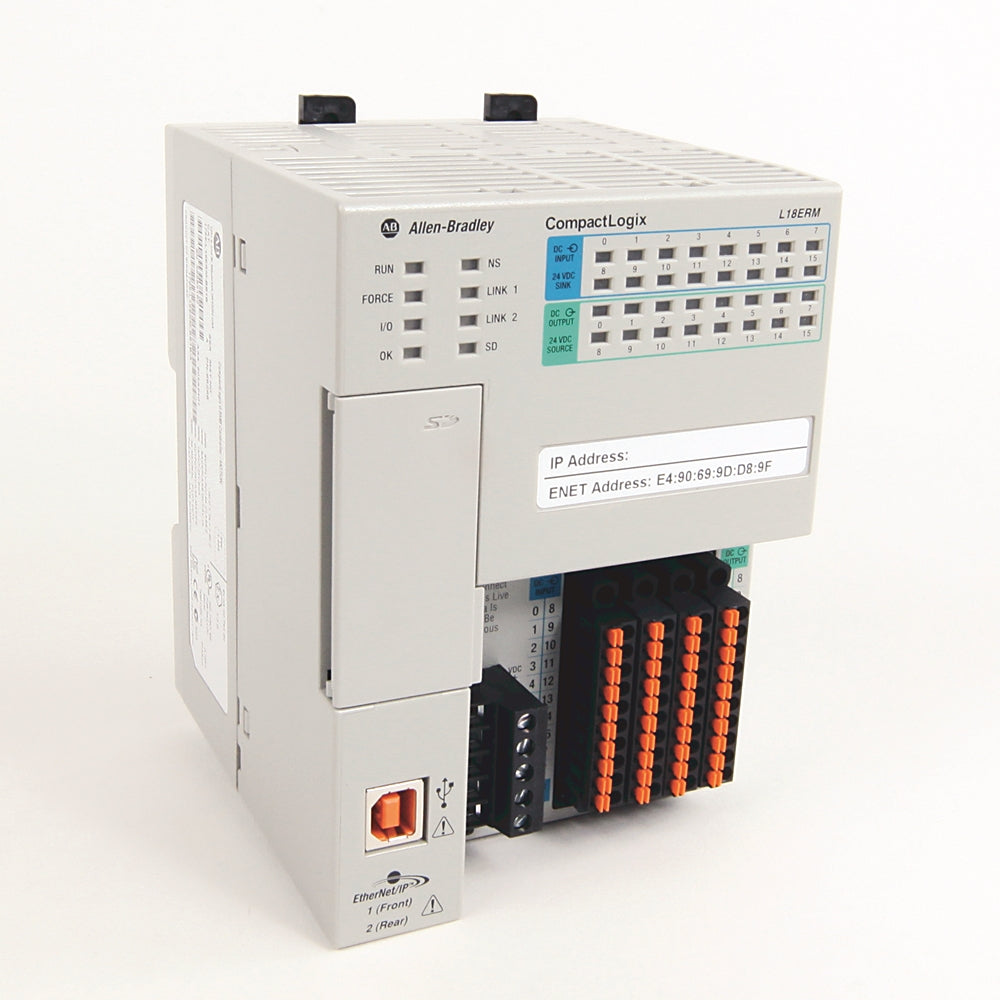

Allen Bradley 1769-L18ERM-BB1B CompactLogix 0.5MB Controller 1769L18ERMBB1B

Description:

The Allen-Bradley 1769-L18ERM-BB1B is a CompactLogix 5370 L1 programmable automation controller (PAC) designed for small to mid-size machine control applications. Featuring dual Ethernet/IP ports with embedded switch technology and integrated motion support for up to 16 axes, this compact controller enables high-speed I/O and motion control in a single, cost-effective platform. It includes built-in 16-point digital I/O, making it an ideal all-in-one solution for OEMs and machine builders looking for reduced panel space and simplified wiring.

TECHNICAL SPECIFICATIONS:

Model: 1769-L18ERM-BB1B
Series: CompactLogix 5370 L1
Processor Type: Dual Ethernet/IP with embedded switch
User Memory: 1 MB
I/O Capacity: 16 embedded digital I/O (8 inputs, 8 outputs)
EtherNet/IP Ports: 2 (embedded switch)
Motion Support: Up to 16 axes (integrated motion over EtherNet/IP)
Expansion I/O: Supports 2 additional 1769 I/O modules
Communication Protocols: EtherNet/IP, USB
USB Port: 1 (Type B, programming only)
Program Scan Time: ~0.4 ms per 1K of Boolean logic
Mounting Type: DIN rail
Power Supply: 24V DC
Dimensions: 90 mm x 87 mm x 112 mm (H x W x D)
Weight: Approx. 0.8 kg (1.76 lbs)
