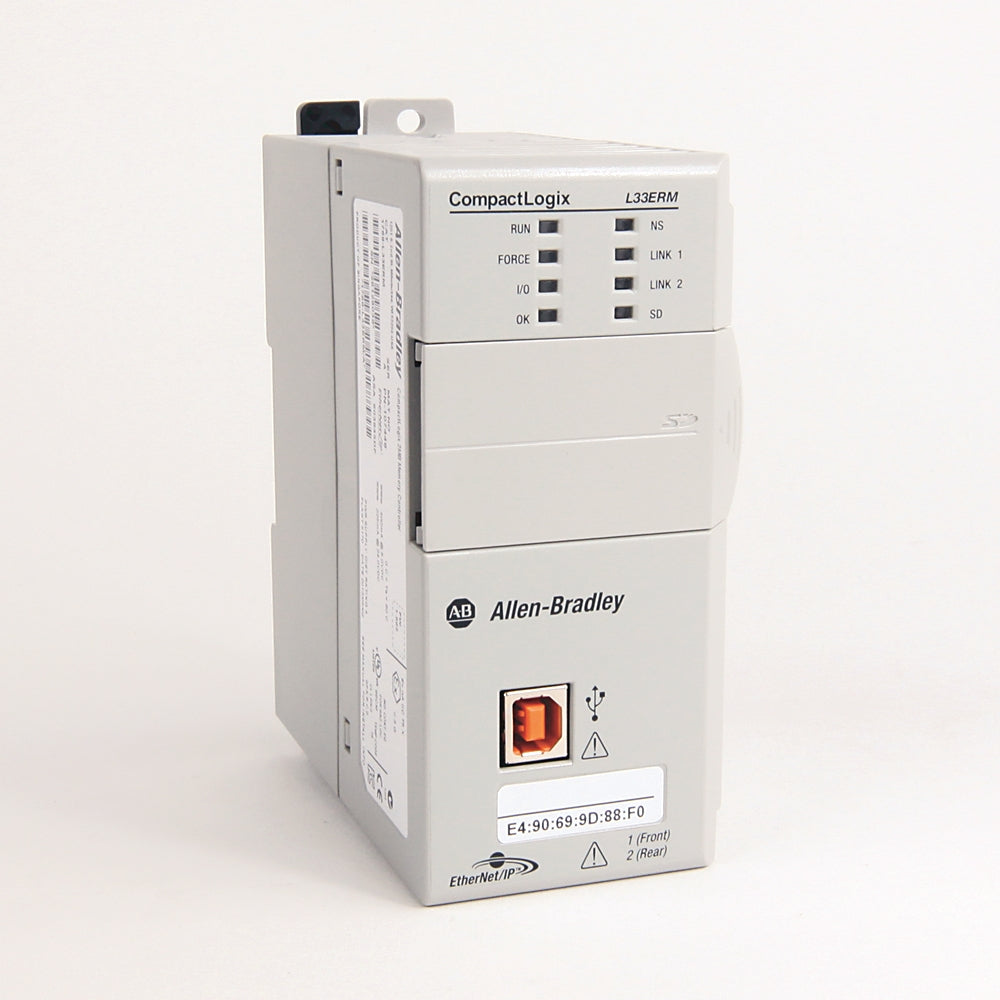

Allen-Bradley 1769-L33ERM 2MB ENET

Description:

The Allen-Bradley 1769-L33ERM is a CompactLogix 5370 L3 series controller that offers integrated motion control and dual Ethernet ports for high-performance communication. Designed for mid-size to large automation systems, it supports up to 16 axes of integrated motion on EtherNet/IP and enables scalable, cost-effective control with easy integration into Rockwell Automation environments. The L33ERM is ideal for applications requiring synchronized motion, high-speed I/O, and distributed control.

TECHNICAL SPECIFICATIONS:

Model: 1769-L33ERM
Controller Series: CompactLogix 5370 L3
Integrated Motion: Supports up to 16 EtherNet/IP motion axes
Communication Ports: 2 x Ethernet/IP ports (embedded switch, DLR support)
User Memory: 2 MB
I/O Capacity: Up to 16 I/O modules (local), supports remote I/O over EtherNet/IP
Programming Software: Studio 5000 Logix Designer
Memory Card Slot: SD card slot (1 GB card included)
USB Port: 1 x USB 2.0 for programming and configuration
Backplane Current Draw: 5V DC, 1.2A
Power Supply: Requires external 1769 CompactLogix power supply
Mounting Type: DIN rail or panel mount
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: –40°C to 85°C (–40°F to 185°F)
Dimensions: 118 mm x 87 mm x 105 mm (4.65 in x 3.43 in x 4.13 in)
Weight: Approx. 0.75 kg (1.65 lbs)
Compliance: CE, UL, c-UL, RoHS
