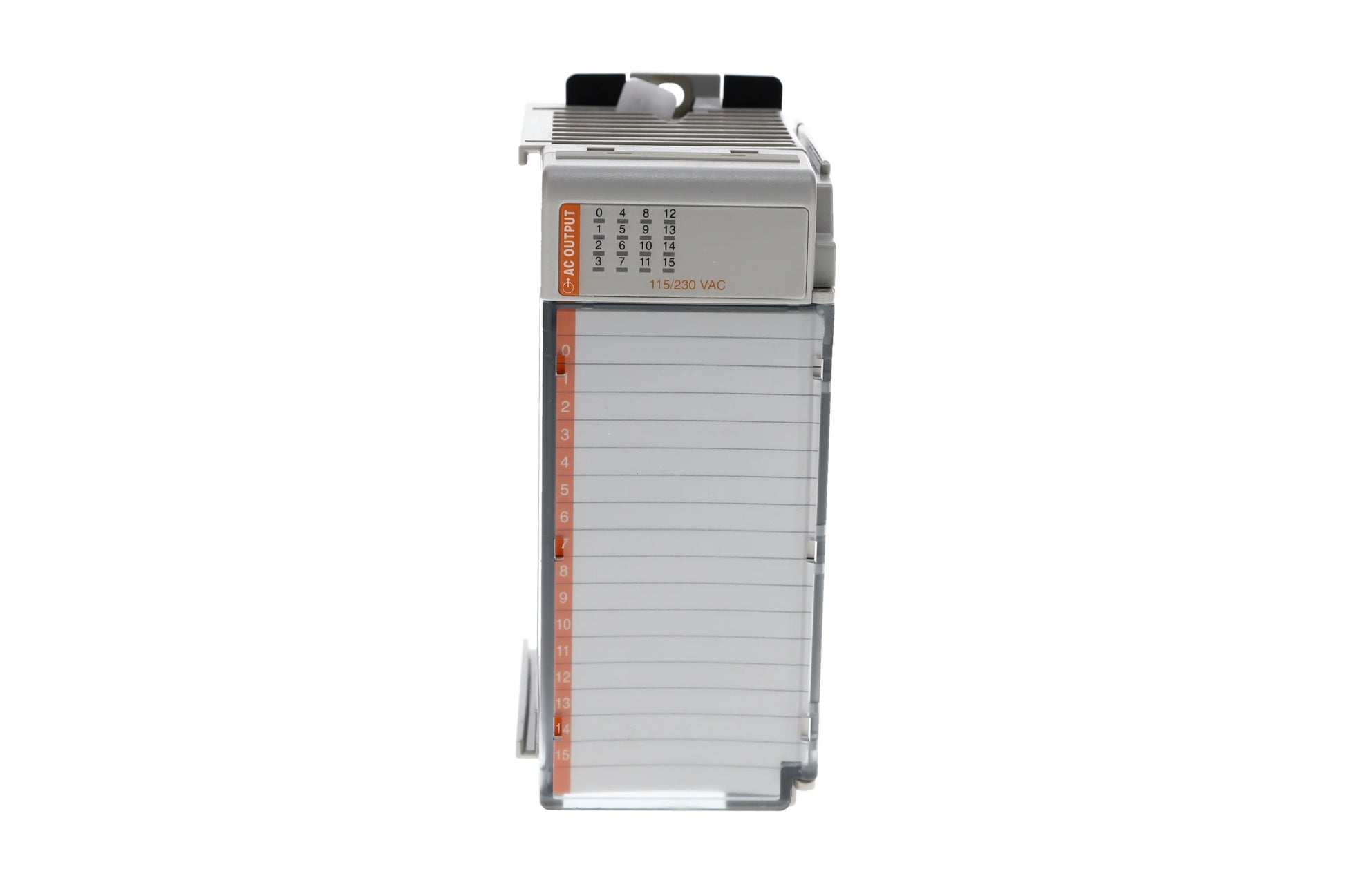

Allen-Bradley 1769-OA16 1769OA16

Description:

1769OA16 I/O MODULE COMPACTLOGIX 16 POINT SOLID STATE AC SOURCE OUTPUT 100/240 VOLT AC The Allen-Bradley 1769-OA16 is a 16-point digital output module designed for use with the CompactLogix 5370 and 5380 series of programmable automation controllers. This module provides reliable and efficient control of industrial devices through its 16 discrete output points, which are designed to handle both AC and DC loads. With its compact form factor and high-density output capabilities, the 1769-OA16 is ideal for applications that require space-saving solutions and versatile control in a variety of automation environments.

Technical Specifications:

• Model: 1769-OA16
• Type: Digital Output Module
• Compatibility: CompactLogix 5370 and 5380 Controllers
• Output Points: 16
• Output Type: Transistor (DC) or Relay (AC)
• Output Voltage (DC): 24V DC
• Output Current (DC): 0.5 A per point
• Output Voltage (AC): 120V AC or 240V AC
• Output Current (AC): 1 A per point
• Isolation: 1500V RMS
• Response Time: 0.5 ms (maximum)
• Power Supply: 24V DC from CompactLogix chassis
• Dimensions: 118 mm x 90 mm x 25 mm (4.6 in x 3.5 in x 1 in)
• Weight: Approximately 0.5 kg (1.1 lbs)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Humidity: 5% to 95% non-condensing
