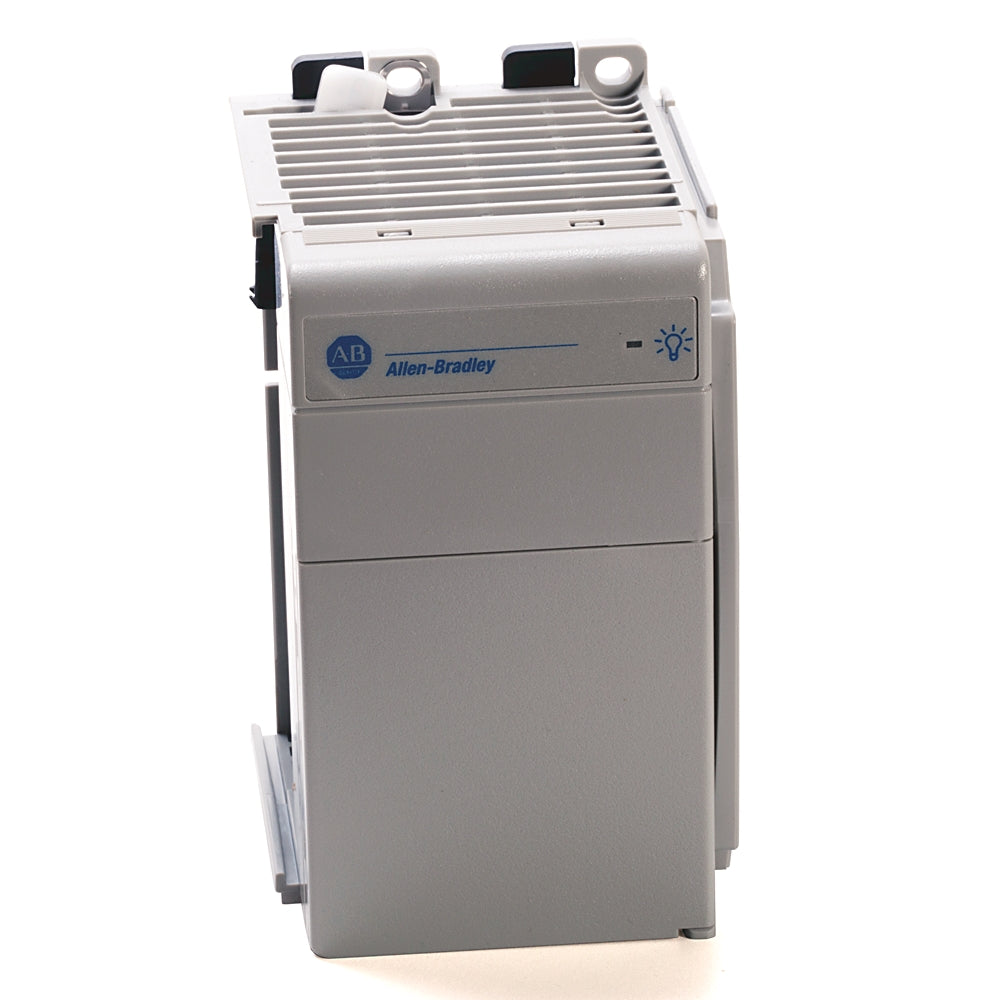

Allen-Bradley 1769-PB2 CompactLogix DC 2A/0.8A Power Supply 1769PB2

Description:

The Allen-Bradley 1769-PB2 CompactLogix DC Power Supply is used in CompactLogix and MicroLogix 1500 control systems to provide regulated backplane power to 1769 Compact I/O modules. Commonly installed in industrial control panels for packaging equipment, conveyor systems, machine automation cells, and process control skids, it supplies stable DC power for controller and I/O module operation. Maintenance teams and system integrators use this power supply for system builds, panel retrofits, capacity expansion, and replacement of failed Compact I/O power units in distributed automation systems.

Applications:

The 1769-PB2 power supply is applied in manufacturing lines, material handling systems, water and wastewater control panels, automotive assembly equipment, and OEM machinery where CompactLogix or MicroLogix 1500 platforms require reliable 24V DC input power to maintain consistent I/O backplane performance.

Technical Specifications:

• Manufacturer Part Number (MPN): 1769-PB2
• Product Type: DC Power Supply Module
• Series: Compact I/O (1769)
• Input Voltage: 24V DC
• Input Voltage Range: 19.2–31.2V DC
• Output Current: 2.0 A at 5V DC
• 24V DC User Output Current: 0.8 A
• Backplane Power: Supplies power to 1769 I/O modules
• Mounting: DIN Rail or Panel Mount
• Compatible Controllers: CompactLogix and MicroLogix 1500
• Operating Temperature: 0°C to 60°C

Common Replacements:

• Allen-Bradley 1769-PA2
• Allen-Bradley 1769-PB4
• Allen-Bradley 1769-PA4
