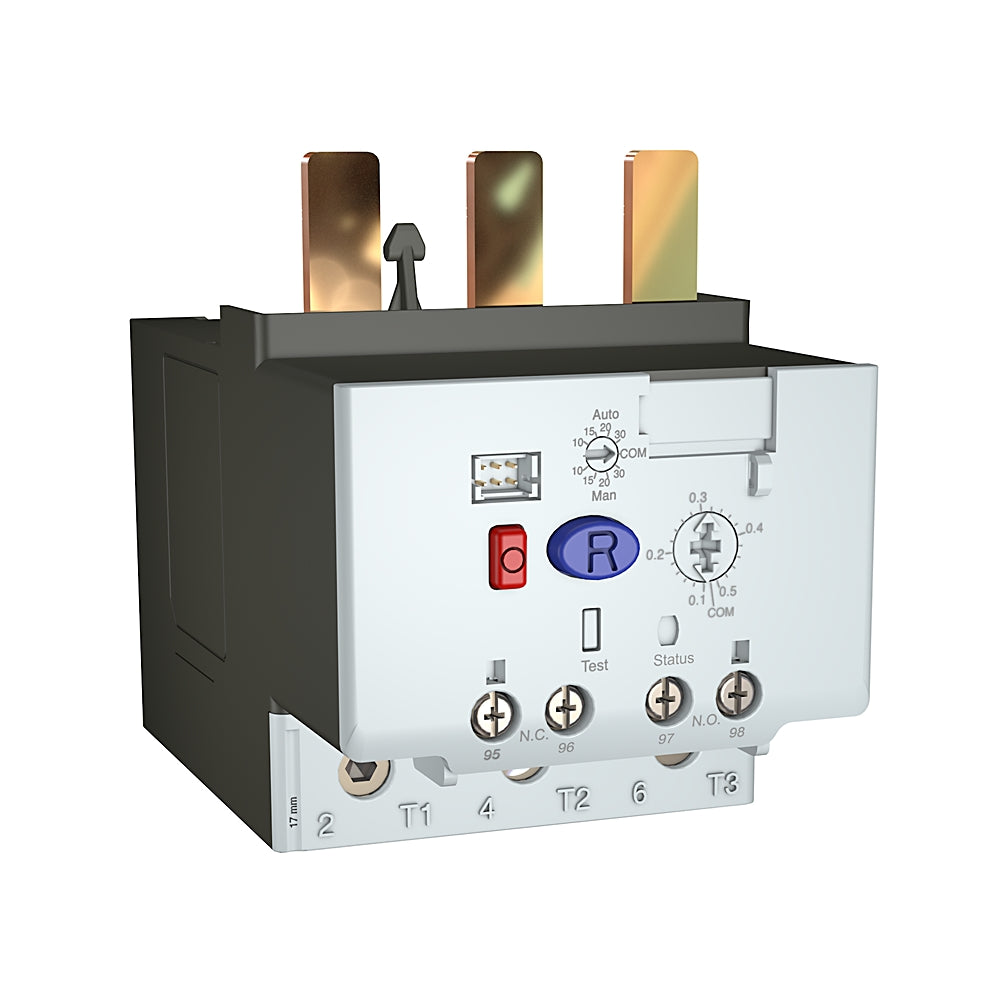

Allen-Bradley 193-1EFGE Overload Relay, 20-100 Amp Range 1931EFGE

Description:

The Allen-Bradley 193-1EFGE Overload Relay is used in motor protection systems to provide adjustable thermal overload protection within a 20–100 amp range for industrial motor control applications. Commonly installed in motor control centers (MCCs), pump and compressor panels, conveyor systems, and heavy machinery starter assemblies, it helps protect motors from overheating and phase loss conditions. Maintenance teams and system integrators use this overload relay for motor starter replacement, protection upgrades, retrofit projects, and restoring failed overload protection components in industrial control panels.

Applications:

The 193-1EFGE overload relay is applied in manufacturing plants, material handling systems, HVAC equipment, water and wastewater facilities, and processing machinery where reliable motor overload protection is required to prevent equipment damage and unplanned downtime.

Technical Specifications:

• Manufacturer Part Number (MPN): 193-1EFGE
• Product Type: Thermal Overload Relay
• Current Adjustment Range: 20–100 A
• Trip Class: Class 10 (typical configuration dependent)
• Phase Loss Protection: Yes
• Mounting: Direct mount to compatible contactor
• Reset Type: Manual / Automatic selectable
• Auxiliary Contacts: 1 NO / 1 NC (integrated)
• Ambient Temperature Compensation: Yes
• Compatible Contactors: Allen-Bradley Bulletin 100-C series

Common Replacements:

• Allen-Bradley 193-1EEGE
• Allen-Bradley 193-1EJGE
• Allen-Bradley 193-E100EE
