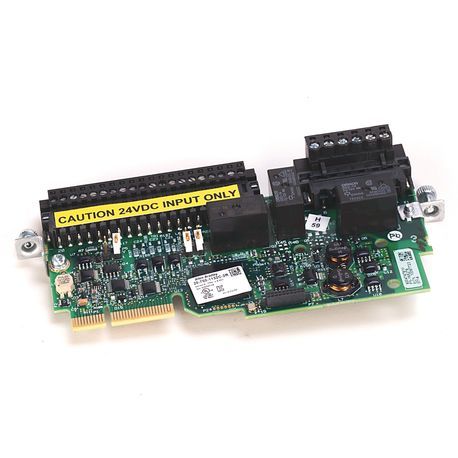

Allen Bradley 20-750-1132C-2R PowerFlex 750 I Card 207501132C2R

Description:

The Allen Bradley 20-750-1132C-2R PowerFlex 750 I/O Module is a 24V DC EIO option card used in PowerFlex 750 series drive systems for hazardous and ATEX-rated environments. Commonly installed in industrial drive panels, process control systems, and hazardous area motor control applications to provide digital input and relay output functionality. Maintenance teams, OEMs, and system integrators use this module for safe system integration, retrofit, or replacement of drive I/O components.

Applications:

The Allen Bradley 20-750-1132C-2R is designed to extend the functionality of PowerFlex 750 drives by providing essential interface signals between the drive and external control or safety devices. It is widely used in oil and gas, chemical processing, and other hazardous environments where ATEX compliance is required. The module supports reliable monitoring and control through digital inputs and relay outputs, ensuring safe and efficient operation of motors and drive systems in demanding industrial conditions.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 20-750-1132C-2R
• Product Type: PowerFlex 750 EIO I/O Option Module
• Supply Voltage: 24 VDC
• Digital Inputs: 1x 24V DC
• Relay Outputs: 2 channels
• I/O Configuration: 1AI, 1AO, 3DI, 2RO
• Compatibility: PowerFlex 750 Series Drives
• Application: ATEX / hazardous environments
• Mounting: Drive-integrated option module
• Operating Temperature: -25°C to +55°C
• Certifications: CE, UL, KC, RCM

Common Replacements:

• Allen Bradley 20-750-1132D-2R
• Allen Bradley 20-750-2262C-2R
• Allen Bradley 20-750-1133C-1R2T
