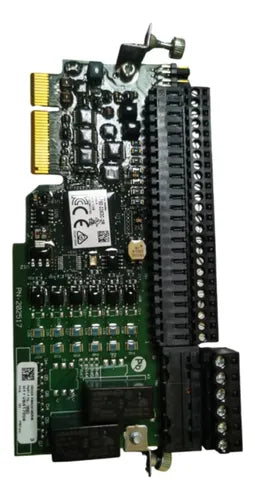

Allen Bradley 20-750-2262C-2R PowerFlex 750 24V I Module 207502262C2R

Description:

The Allen Bradley 20-750-2262C-2R PowerFlex 750 I/O Module is a 24V DC input/output option module used in PowerFlex 750 series variable frequency drive systems. Commonly installed in motor control panels, industrial drives, and automation systems to provide expanded analog and digital I/O capability. Maintenance teams, OEMs, and system integrators use this module for drive expansion, system upgrades, or replacement of existing I/O modules.

Applications:

The Allen Bradley 20-750-2262C-2R is designed to extend the functionality of PowerFlex 750 drives by providing additional analog and digital I/O channels for monitoring and control. It is widely used in conveyor systems, pumps, fans, compressors, and process automation equipment where precise signal interfacing and motor control are required. This module enables seamless communication between field devices and drive systems, improving automation efficiency and control accuracy in industrial environments.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 20-750-2262C-2R
• Product Type: PowerFlex 750 I/O Option Module
• Supply Voltage: 24 VDC
• Analog Inputs: 2 channels (0–10V / 4–20 mA)
• Analog Outputs: 2 channels (0–10V / 4–20 mA)
• Digital Inputs: 6 channels (24V DC)
• Relay Outputs: 2 channels (2A at 250V AC / 30V DC)
• Current Consumption: Approx. 100 mA
• Operating Temperature: -20°C to +60°C
• Compatibility: PowerFlex 750 Series Drives
• Certifications: CE, UL, KC, RCM

Common Replacements:

• Allen Bradley 20-750-2262D-2R
• Allen Bradley 20-750-1132D-2R
• Allen Bradley 20-750-2263C-1R2T
