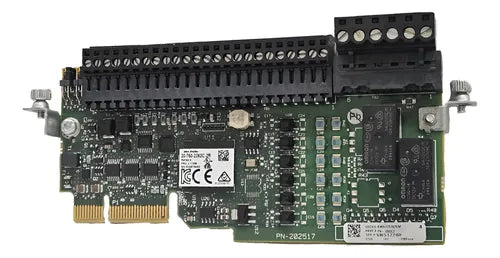

Allen Bradley 20-750-2262C-2R PowerFlex 750 24V I Module 207502262C2R

Description:

The Allen Bradley 20-750-2262C-2R PowerFlex 750 I/O Module is a 24V DC input/output option module used in PowerFlex 750 series variable frequency drive systems. Commonly installed in motor control panels, industrial drives, and automation systems to provide additional analog and digital I/O capability. Maintenance teams, OEMs, and system integrators use this module for drive expansion, system upgrades, or replacement of existing I/O modules.

Applications:

The Allen Bradley 20-750-2262C-2R is designed to extend the control functionality of PowerFlex 750 series drives by providing integrated analog and digital I/O channels for process feedback and control. It is widely used in conveyor systems, pumps, fans, compressors, and manufacturing equipment where precise motor control and signal interfacing are required. This module enables seamless integration between drives and control systems, supporting efficient automation and improved system responsiveness in industrial environments.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part Number: 20-750-2262C-2R
• Product Type: PowerFlex 750 I/O Option Module
• Supply Voltage: 24 VDC
• Analog Inputs: 2 channels (0–10V / 4–20 mA)
• Analog Outputs: 2 channels (0–10V / 4–20 mA)
• Digital Inputs: 6 channels (24V DC)
• Relay Outputs: 2 channels (2A at 250V AC / 30V DC)
• Series Compatibility: PowerFlex 750 Series Drives
• Mounting: Drive-integrated option module
• Certifications: CE, UL, KC, RCM
• Operating Temperature: -20°C to +60°C

Common Replacements:

• Allen Bradley 20-750-2262D-2R
• Allen Bradley 20-750-1132D-2R
• Allen Bradley 20-750-2263C-1R2T
