Allen-Bradley 20-750-ENC-1 INCREMENTAL ENCODER 20750ENC1

Description:

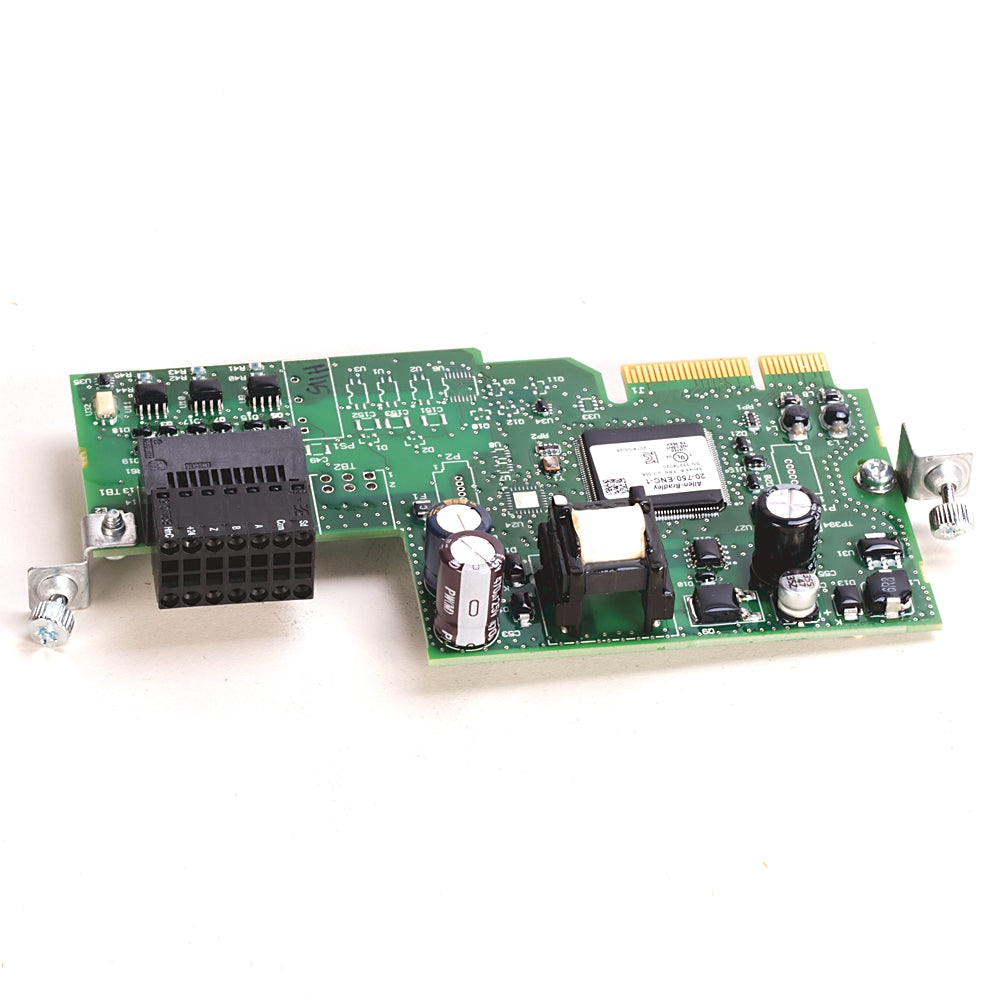

20750ENC1 OPTION MODULE SINGLE INCREMENTAL ENCODER INPUT 5V DC USE WITH POWERFLEX 750 SERIES The Allen-Bradley 20-750-ENC-1 is a versatile encoder module designed for use with the 750 Series of I/O systems, providing precise and reliable position feedback for industrial automation applications. This module is capable of processing signals from rotary encoders, enabling accurate monitoring and control of rotational positions in machinery and equipment. It supports various encoder types and offers high-resolution input for fine-grained control, making it suitable for applications requiring precise motion control and data acquisition.

Technical Specifications:

• Encoder Types Supported: Incremental encoders
• Input Channels: 2 channels (A and B)
• Resolution: Up to 20-bit (1,048,576 counts per revolution)
• Input Frequency: 100 kHz max per channel
• Input Voltage Range: 5V DC to 30V DC
• Power Requirements:
• 0.5 A at 24V DC (from backplane)
• 1.5 W power dissipation
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -20 to 85 °C (-4 to 185 °F)
• Dimensions: 3.8 x 2.8 x 3.5 in (96 x 71 x 90 mm)
• Weight: 0.3 kg (0.66 lbs)
• Certifications: UL, CE, and cULus certified
• Application: Suitable for precise position feedback and control in motion systems, robotics, and other automation applications using the 750 Series I/O system
