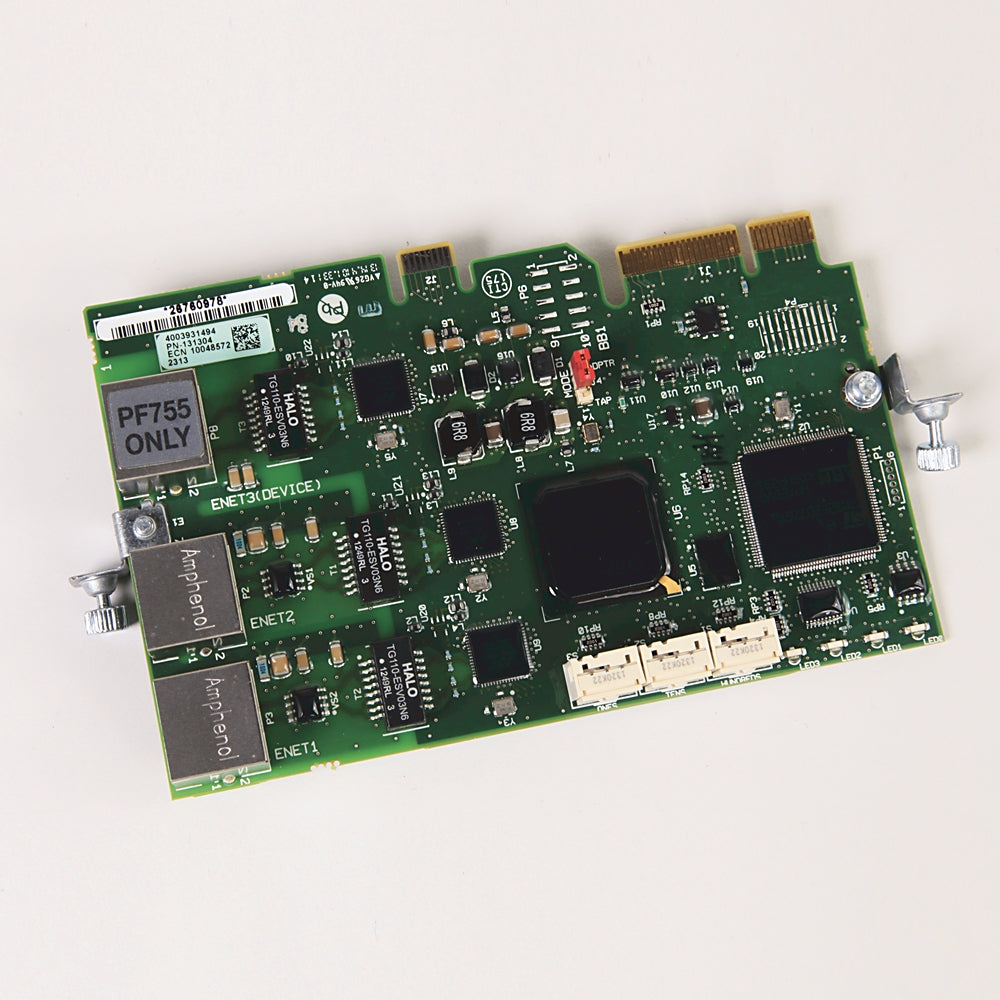

Allen-Bradley 20-750-ENETR 750 2-P ENet/IP Module 20750ENETR

Description:

The Allen-Bradley 20-750-ENETR PowerFlex 750 2-Port EtherNet/IP Module is used in industrial drive control systems to provide Ethernet network communication for PowerFlex 750 series AC drives. It enables high-speed data exchange between the drive and PLC controllers over an EtherNet/IP network, supporting advanced monitoring, diagnostics, and control integration. Commonly installed in manufacturing equipment, conveyor systems, material handling machinery, and automated production lines, this communication module allows drives to be connected to plant-wide industrial networks. Maintenance teams and system integrators use this module for system expansion, network integration, drive communication upgrades, and replacement of existing PowerFlex communication modules.

Applications:

The Allen-Bradley 20-750-ENETR communication module is used in industrial automation systems where PowerFlex 750 series drives require integration with Ethernet-based control networks. It is commonly applied in conveyor and material handling systems, manufacturing production lines, pump and fan control systems, and automated industrial equipment where EtherNet/IP communication is required for drive monitoring, diagnostics, and centralized control.

Technical Specifications:

• Manufacturer Part Number (MPN): 20-750-ENETR
• Product Type: EtherNet/IP Communication Module
• Series: PowerFlex 750 Series
• Network Protocol: EtherNet/IP
• Ethernet Ports: 2 RJ45 Ports
• Network Topology Support: Device Level Ring (DLR), Linear, Star
• Communication Speed: 10/100 Mbps
• Compatibility: PowerFlex 750 Series AC Drives
• Indicators: Network and module status LED indicators
• Mounting: Internal module slot in PowerFlex 750 drive
• Operating Temperature: 0 to 50 °C (32 to 122 °F)

Common Replacements:

• Allen-Bradley 20-750-ENET
• Allen-Bradley 20-COMM-E
• Allen-Bradley 20-750-ENETRXT
