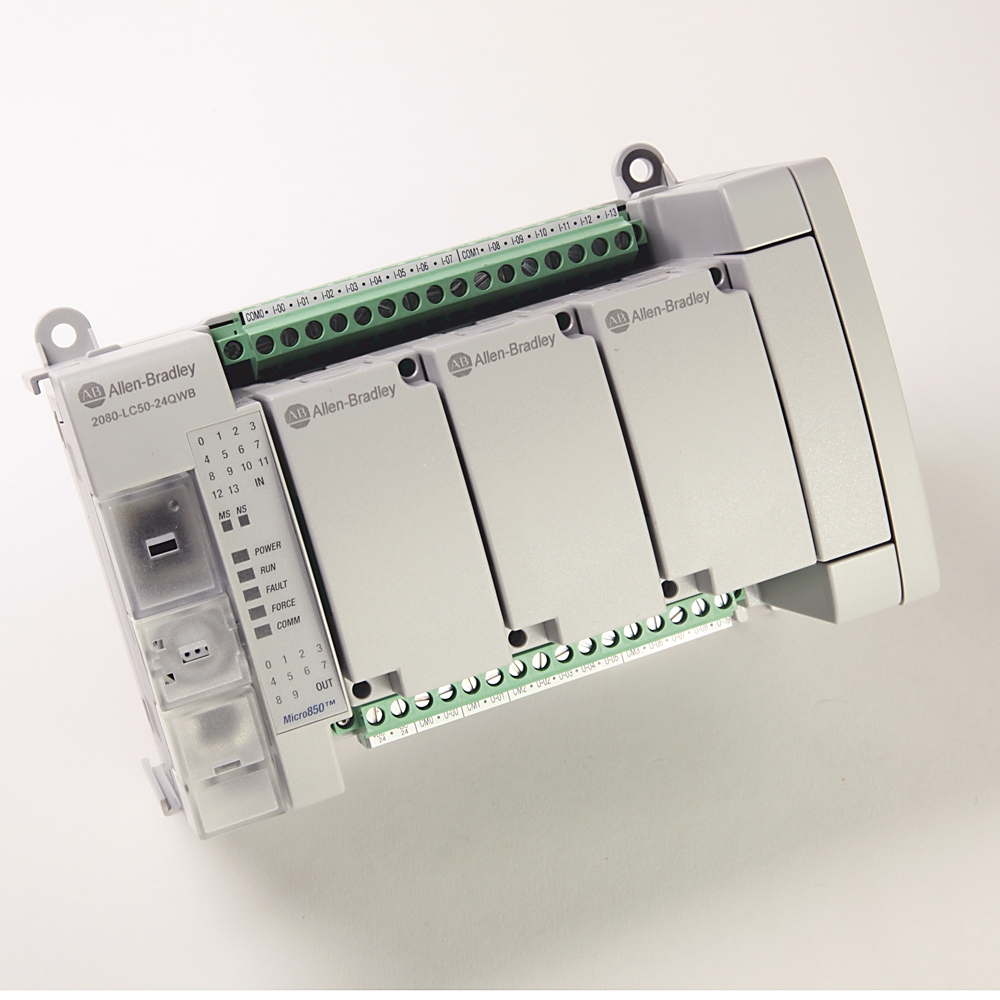

Allen-Bradley 2080-LC50-24QWB Micro850 24 I/O EtherNet/IP Controller 2080LC5024QWB

DESCRIPTION
The Allen-Bradley 2080-LC50-24QWB is a Micro850 programmable logic controller (PLC) designed for flexible, scalable control in standalone machine applications. It features 24 embedded I/O points, including relay outputs and analog inputs, and supports expansion modules and plug-in capabilities. The Micro850 is programmed using Connected Components Workbench (CCW) software and is ideal for OEMs and machine builders looking for a cost-effective and modular control solution.

TECHNICAL SPECIFICATIONS
Model Number: 2080-LC50-24QWB
Series: Micro850
Processor Type: Micro850
Embedded I/O:
– 14 Digital Inputs (24V DC sink/source)
– 10 Relay Outputs
– 2 Analog Inputs (0–10V DC)
Input Voltage: 24V DC
Output Type: Relay (non-isolated)
Communication Ports:
– 1x USB programming port
– 1x Serial (RS-232/RS-485 non-isolated)
– 1x Ethernet port
Expansion Support: Supports up to 4 I/O expansion modules and up to 3 plug-in modules
Memory: 20 KB user program, 10 KB user data
Real-Time Clock: Integrated
Mounting: DIN rail or panel mount
Operating Temperature: -20°C to +65°C
Dimensions: Approx. 90 x 100 x 85 mm
Certifications: cULus, CE, KC, RCM
Software: Connected Components Workbench (CCW)
Manufacturer: Rockwell Automation / Allen-Bradley
