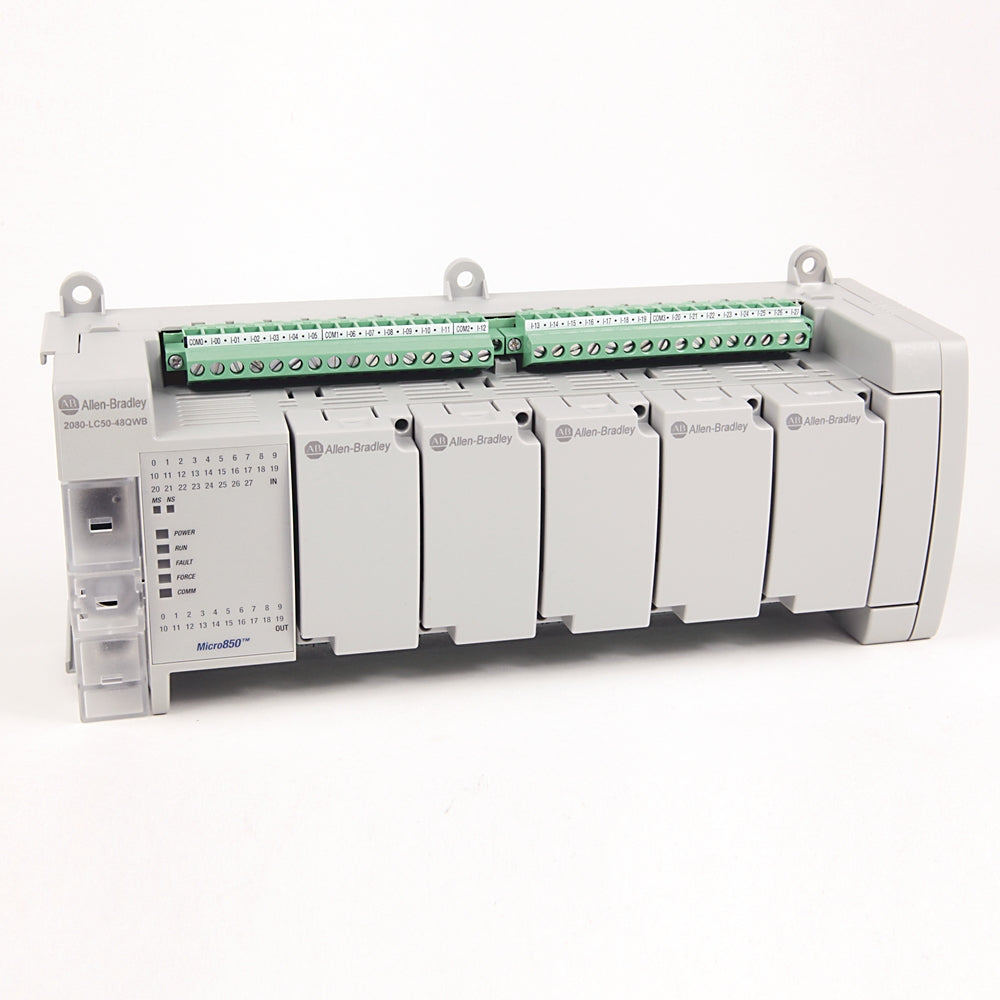

Allen-Bradley 2080-LC50-48QWB Micro850 48 I/O Controller 2080LC5048QWB

DESCRIPTION
The 2080-LC50-48QWB is a high-capacity Micro850 programmable logic controller (PLC) from Allen-Bradley’s Micro800 series. Designed for larger standalone machine control applications, it offers 48 embedded I/O points, including digital, analog, and high-speed I/O, with built-in Ethernet and USB programming ports. This model features relay outputs, making it suitable for switching various types of field devices without worrying about output voltage compatibility.

TECHNICAL SPECIFICATIONS
Model: 2080-LC50-48QWB
Series: Micro850
Power Supply: 24V DC
Embedded I/O:
– 28 digital inputs (24V DC sourcing)
– 20 digital relay outputs (2A max per point)
– 2 analog inputs (0–10V, 12-bit resolution)
Communication Ports:
– 1 x Ethernet (RJ45)
– 1 x USB (programming/debug)
– 1 x RS-232/RS-485 (non-isolated)
High-Speed Counter (HSC): Up to 4 channels
Program Memory: 80 KB
Data Memory: 20 KB
Expansion Support: Yes (supports up to 4 Micro800 I/O expansion modules)
Mounting: DIN rail or panel mount
Programming Software: Connected Components Workbench (CCW)
Real-Time Clock: Built-in
Operating Temperature: 0 to 55°C
