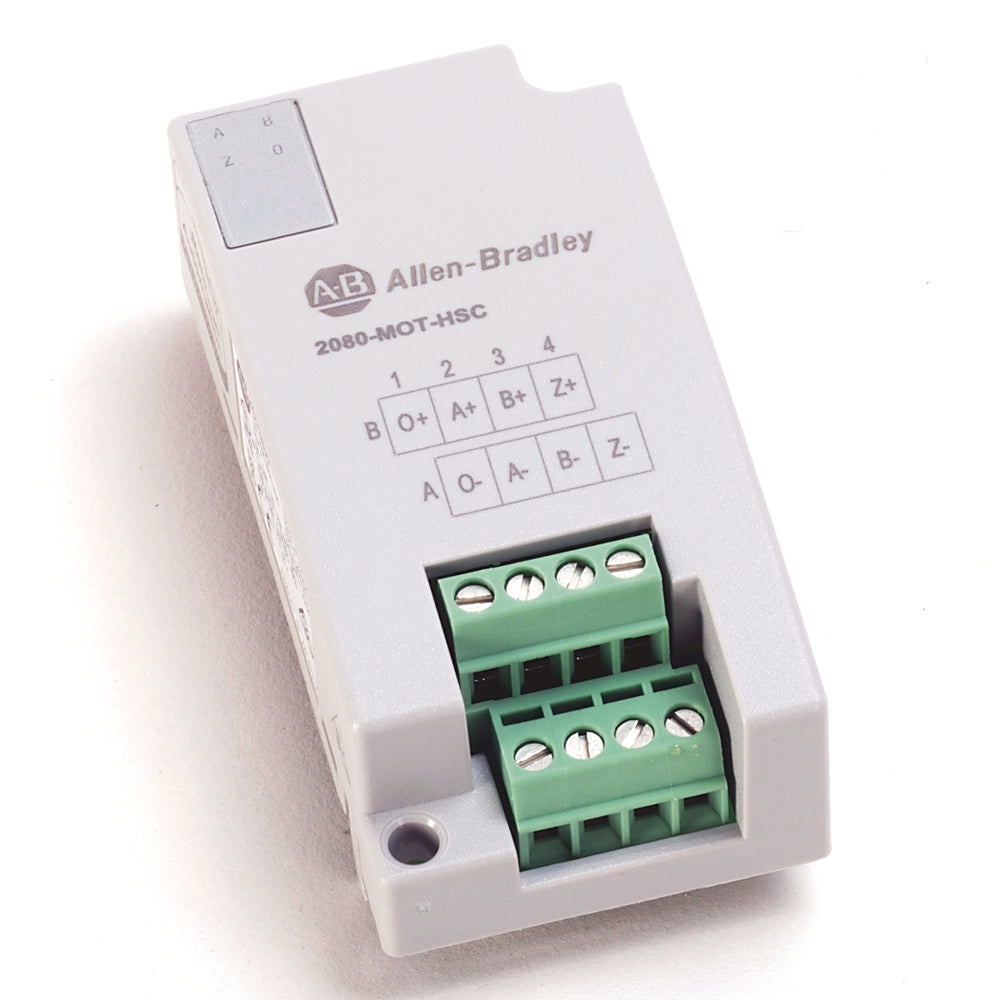

Allen-Bradley 2080-MOT-HSC Micro800 250KHz HSC Plug-In module 2080MOTHSC

Description:

The Allen-Bradley 2080-MOT-HSC Micro800 250KHz High-Speed Counter Plug-In Module is used in Micro800 PLC systems to provide high-speed counting and motion-related feedback for precision automation applications. Commonly installed in compact machine control panels for packaging equipment, labeling machines, indexing tables, and small assembly systems, it enables accurate pulse counting up to 250 kHz for encoder and high-speed sensor inputs. Maintenance teams and system integrators use this plug-in module for motion control enhancement, system upgrades, retrofit projects, and replacement of failed high-speed counter modules in Micro800-based automation platforms.

Applications:

The 2080-MOT-HSC module is applied in material handling systems, bottling lines, cutting and positioning equipment, and OEM machinery where high-speed encoder feedback and precise position or speed monitoring are required for accurate machine operation.

Technical Specifications:

• Manufacturer Part Number (MPN): 2080-MOT-HSC
• Product Type: High-Speed Counter Plug-In Module
• Series: Micro800
• Maximum Counting Frequency: 250 kHz
• Input Type: High-speed digital inputs for encoder signals
• Compatible Controllers: Micro820, Micro830, Micro850
• Input Voltage: 24V DC
• Mounting: Plug-in module (controller-mounted)
• Isolation: Controller-based isolation
• Application Support: Encoder feedback and high-speed pulse counting
• Programming Software: Connected Components Workbench (CCW)

Common Replacements:

• Allen-Bradley 2080-MOT-HSC2
• Allen-Bradley 2080-IQ4
• Allen-Bradley 1734-VHSC24
