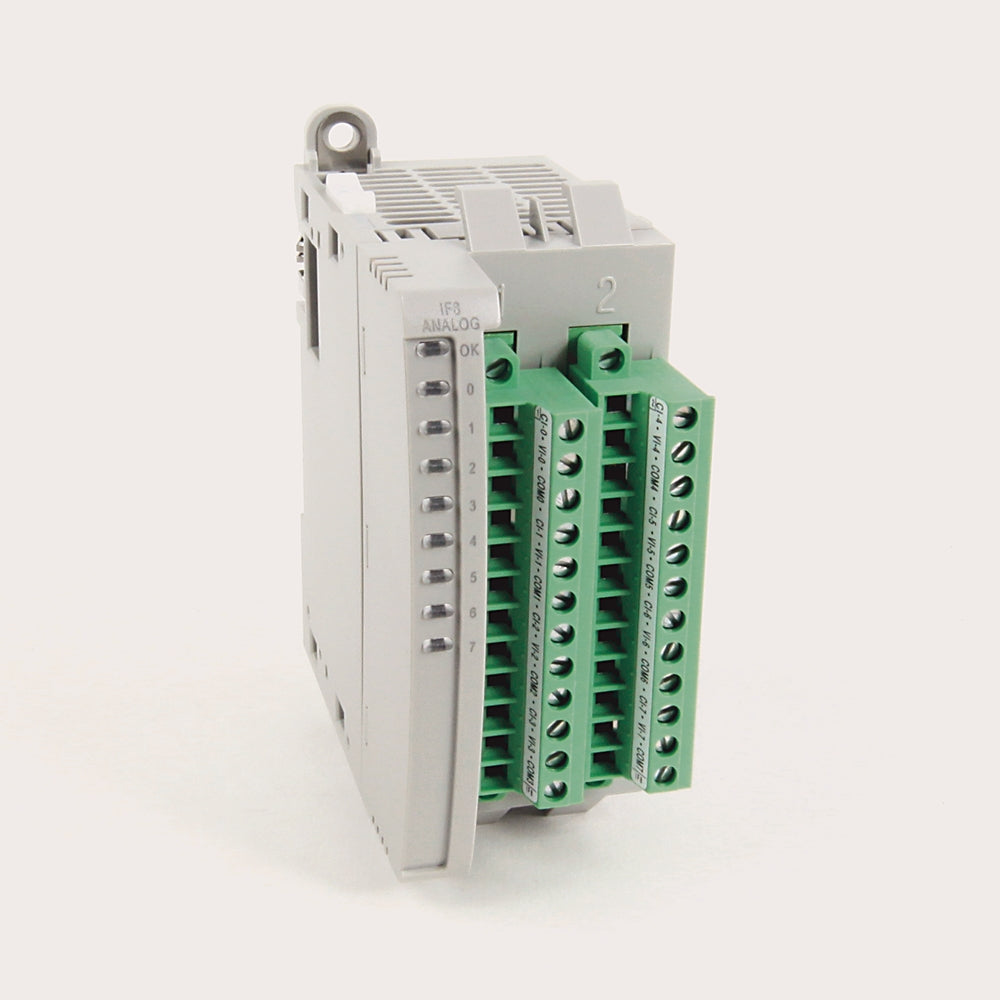

Allen-Bradley 2085-IF8 Micro800 8 Point Analog Input Module 2085IF8 Sealed

Description:

The Allen-Bradley 2085-IF8 is an 8-channel analog input module designed for use with Micro850 and Micro870 programmable logic controllers. This compact expansion module allows high-resolution analog signal acquisition for a variety of industrial sensors and devices. Supporting both voltage and current inputs, it is ideal for process control applications such as temperature, pressure, and level monitoring. The module connects easily to the main controller and integrates seamlessly using Connected Components Workbench (CCW) software.

TECHNICAL SPECIFICATIONS:

Model: 2085-IF8
Series: Micro850 / Micro870
Input Channels: 8 analog inputs
Input Signal Types:
Voltage: ±10V, 0–10V
Current: 0–20 mA, 4–20 mA
Resolution: 12 bits
Input Impedance:
Voltage: >200 kΩ
Current: 250 Ω (internal resistor)
Conversion Rate: 10 ms/channel
Accuracy: ±1% full scale
Power Supply: 24V DC (from base unit)
Mounting Type: DIN rail
Configuration Software: Connected Components Workbench (CCW)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Dimensions: 90 mm x 87 mm x 60 mm (H x W x D)
Weight: Approx. 200 g (0.44 lbs)
