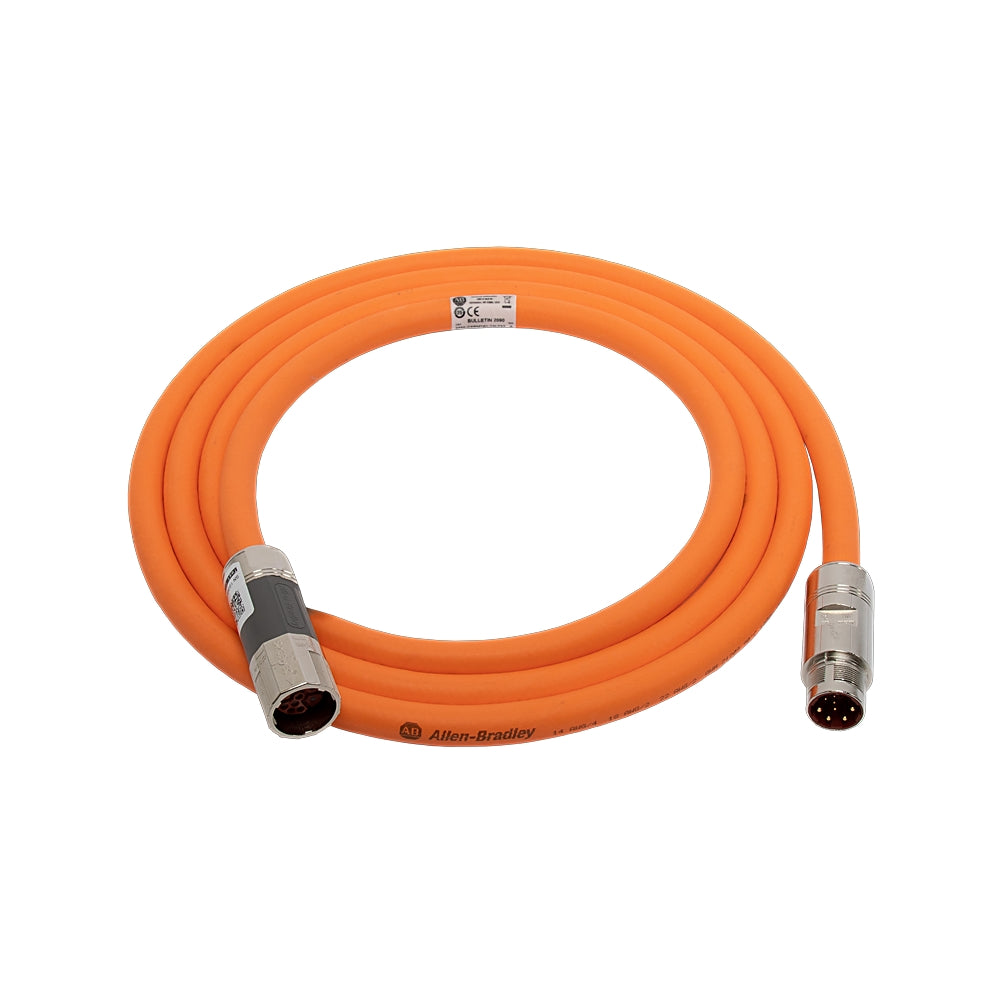

Allen-Bradley 2090-CSBM1E1-18AF05 DOUBLE ENDED CABLE #307009 2090CSBM1E118AF05

Description:

The Allen-Bradley 2090-CSBM1E1-18AF05 Double Ended Cable (2090CSBM1E118AF05) is used in Kinetix servo drive systems to provide power and feedback connectivity between servo drives and motors. Commonly installed in motion control panels, robotic cells, packaging equipment, and automated production machinery where reliable motor-to-drive communication and power transmission are required. Maintenance teams, OEMs, and system integrators use this cable for new machine builds, motion system replacements, cable upgrades, and restoring reliable servo performance in industrial environments.

Applications:

The Allen-Bradley 2090-CSBM1E1-18AF05 cable is widely used in industrial motion control systems to connect Kinetix servo drives to compatible servo motors. It supports precise motion applications in material handling systems, CNC machinery, automated assembly equipment, and high-speed manufacturing lines where secure, shielded, and factory-terminated cable assemblies are essential for optimal performance and noise reduction.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 2090-CSBM1E1-18AF05
• Product type: Double-ended servo motor power/feedback cable
• Series: 2090 Kinetix cable series
• Cable length: 5 meters (approximate based on part code)
• Connector type: Factory-installed connectors on both ends
• Application: Servo motor to drive connection
• Shielding: Industrial-grade shielded cable
• Compatibility: Kinetix servo drives and motors
• Application environment: Industrial motion control systems

Common Replacements:

• Allen-Bradley 2090-CSBM1E1-18AF10
• Allen-Bradley 2090-CSBM1E1-18AF20
• Siemens 6FX5002-5CS41-1BF0
