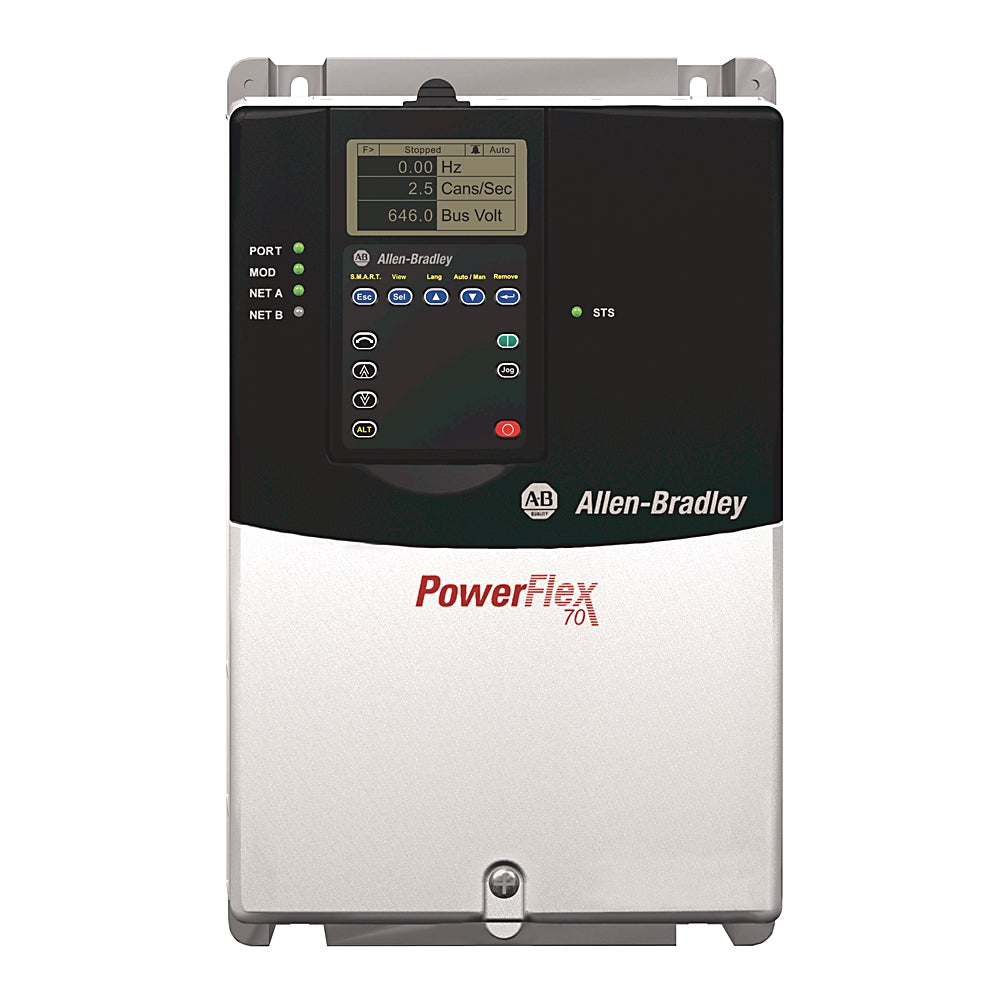

Allen Bradley 20AD011A0AYNANC0 PowerFlex 70 AC Drive

Description:

The Allen-Bradley 20AD011A0AYNANC0 PowerFlex 70 AC drive is used in industrial automation systems to control the speed and torque of AC motors in demanding applications. Commonly installed in manufacturing equipment, conveyors, pumps, and fans where precise motor control and energy efficiency are required. Maintenance teams and system integrators use this drive for motor control, system upgrades, process optimization, and replacement of legacy variable frequency drives.

Applications:

The Allen-Bradley 20AD011A0AYNANC0 PowerFlex 70 drive is commonly used in material handling systems, packaging lines, HVAC systems, pumps, compressors, and general manufacturing processes where adjustable speed control and reliable motor operation are critical. It supports both simple and advanced control strategies for a wide range of industrial applications.

Technical Specifications:

• Manufacturer Part Number (MPN): 20AD011A0AYNANC0
• Product Type: Variable Frequency Drive (VFD)
• Series: PowerFlex 70
• Input Voltage: 480 VAC, 3-phase
• Output Current: 11 Amps (continuous)
• Power Rating: 7.5 HP (5.5 kW) normal duty
• Control Type: Enhanced control (V/Hz, sensorless vector, vector control)
• Overload Capacity: 110% (60 sec), 150% (3 sec)
• Enclosure: IP20 / NEMA Type 1, panel mount
• Frame Size: Frame C
• I/O: 6 digital inputs, 2 analog inputs, 1 analog output, relay outputs
• Communication: No internal communication module (expandable)
• Features: Brake IGBT included, EMC filtering, programmable control modes
• Application Environment: Industrial motor control systems

Common Replacements:

• Allen-Bradley 20AD014A0AYNANC0 (10 HP version)
• Allen-Bradley PowerFlex 525 Series (newer compact alternative)
• Allen-Bradley PowerFlex 753 Series (modern upgrade)
