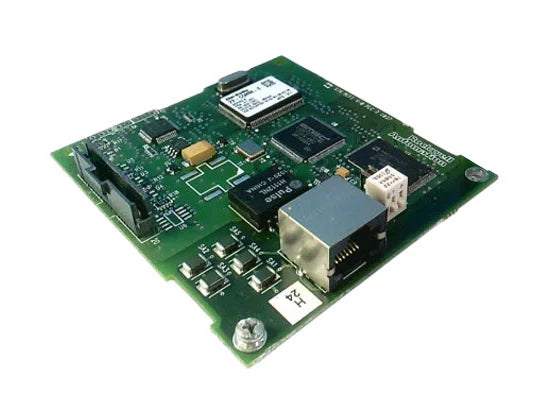

Allen-Bradley 22-COMM-E Ethernet/IP Comm Adapter TX 22COMME

DESCRIPTION

The Allen-Bradley 22-COMM-E is an Ethernet/IP communication adapter designed for use with PowerFlex 4-Class AC drives, including the PowerFlex 4, 40, 40P, and similar models. This compact module enables the drive to connect directly to an EtherNet/IP network, allowing high-speed, real-time control and monitoring of drive performance through standard Ethernet infrastructure. The adapter provides seamless integration with Rockwell Automation controllers and software, such as Studio 5000 and RSLogix 5000, supporting easy parameter configuration, diagnostics, and status monitoring.

TECHNICAL SPECIFICATIONS

Model: 22-COMM-E
Communication Protocol: EtherNet/IP
Supported Drives: PowerFlex 4, 40, 40P, and other 22-series drives
Data Rate: 10/100 Mbps (auto-sensing)
Network Connection: RJ45 port
Status Indicators: Network status, module status, link status
Mounting: Panel or DIN rail via adapter bracket
Power Supply: Supplied from host drive
Configuration Tools: RSLogix 5000 / Studio 5000, DriveExplorer, DriveExecutive
Environmental Rating: IP20
Operating Temperature: 0°C to 50°C (32°F to 122°F)
