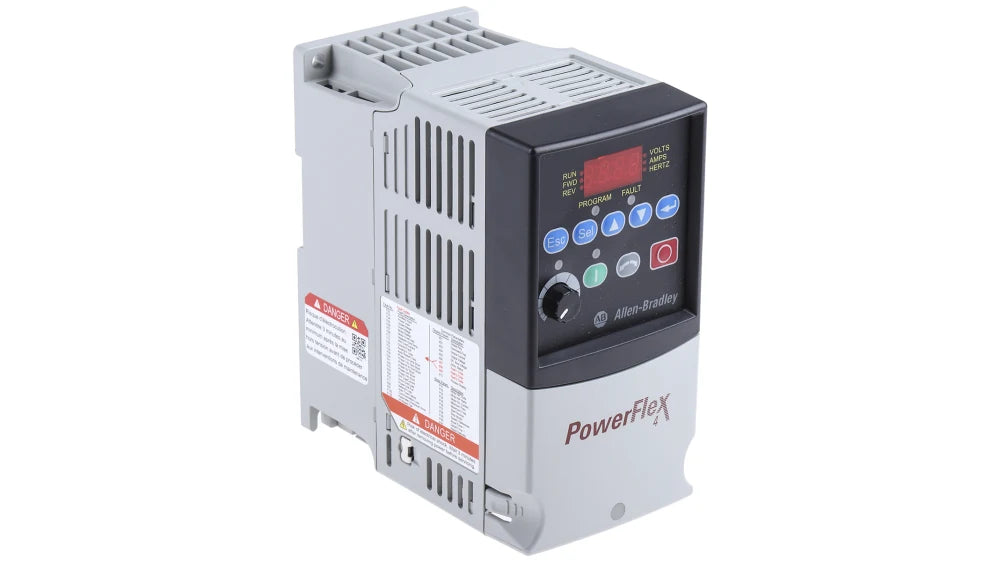

Allen-Bradley 22A-D1P4N104 PowerFlex 4- 0.4 kW 0.5 HP AC Drive 22AD1P4N104

Description:

The Allen-Bradley 22A-D1P4N104 PowerFlex 4 0.4 kW (0.5 HP) AC Drive is used in variable frequency drive systems to control the speed and torque of three-phase AC motors in industrial automation applications. It provides adjustable motor speed control, compact design, and reliable motor protection for small motor-driven equipment. Commonly installed in conveyor systems, small pumps, fans, mixers, and packaging machinery, this drive enables efficient motor control within compact industrial control panels. Maintenance teams and system integrators use this drive for equipment repair, drive replacement, automation upgrades, and retrofit of existing motor control systems.

Applications:

The Allen-Bradley 22A-D1P4N104 PowerFlex 4 AC drive is used in industrial motor control systems that require adjustable speed control for small motors. It is commonly applied in conveyor and material handling systems, small pump and fan control, packaging equipment, and light manufacturing machinery where reliable variable speed motor control improves machine performance and energy efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): 22A-D1P4N104
• Product Type: Adjustable Frequency AC Drive
• Series: PowerFlex 4
• Motor Power Rating: 0.4 kW (0.5 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Output Current: 1.4 A
• Frequency Range: 0–400 Hz
• Control Method: Volts/Hertz (V/Hz) Control
• Enclosure Rating: IP20 (Open Type)
• Mounting Type: Panel Mount
• Communication Interface: Optional communication modules
• Operating Temperature: -10 to 50 °C (14 to 122 °F)

Common Replacements:

• Allen-Bradley 22A-D2P3N104
• Allen-Bradley 22F-D1P4N103
• Allen-Bradley 25A-D1P4N104
