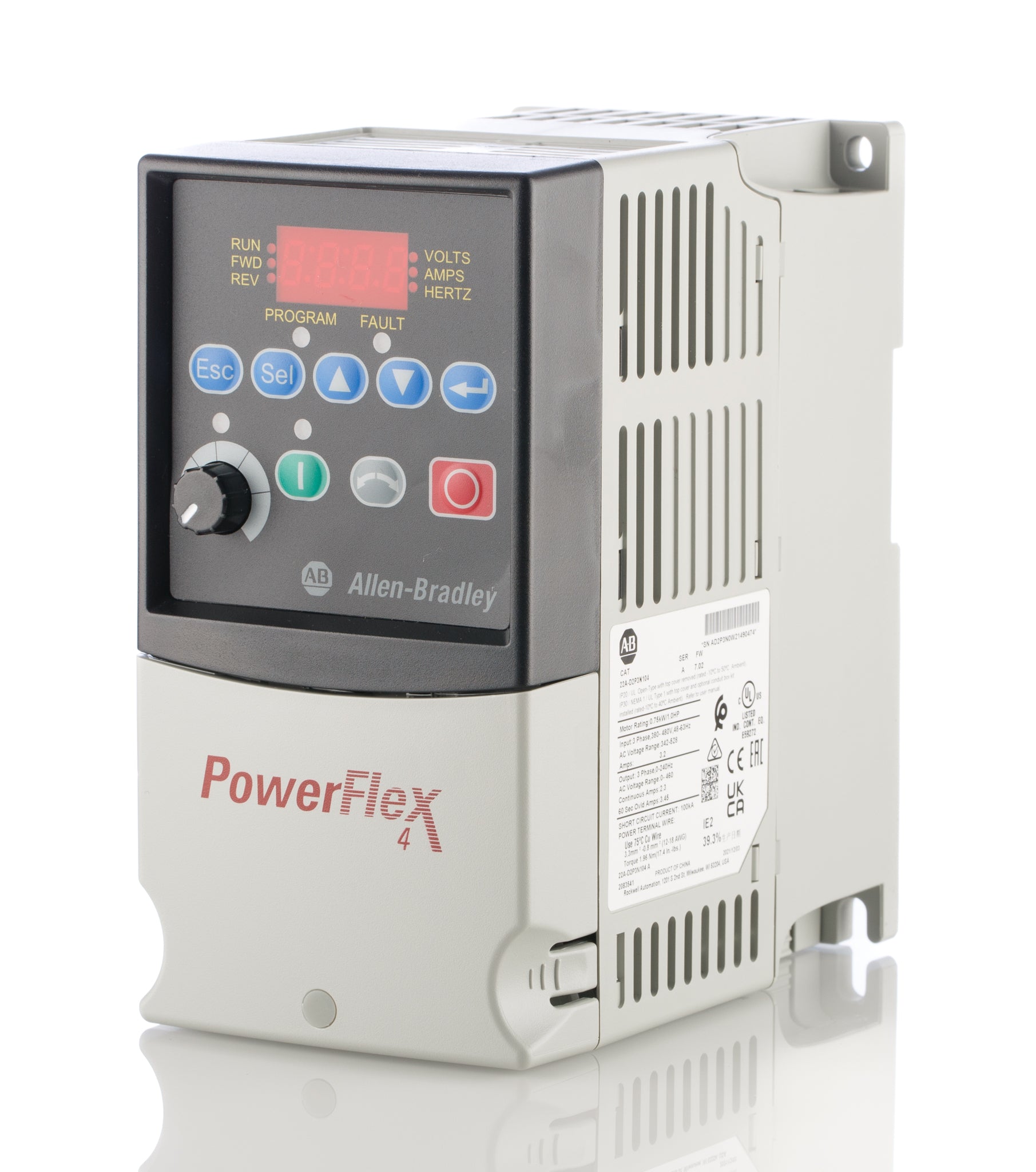

Allen-Bradley 22A-D2P3N104 PowerFlex 4- 0.75 kW (1 HP) AC Drive 22AD2P3N104

Description:

The Allen-Bradley 22A-D2P3N104 PowerFlex 4 0.75 kW (1 HP) AC Drive is used in variable frequency drive systems to control the speed and torque of three-phase AC motors in industrial automation applications. It provides adjustable motor speed control, compact installation, and reliable operation for equipment requiring efficient motor performance. Commonly installed in conveyor systems, pumps, fans, mixers, and packaging machinery, this drive supports flexible motor control within industrial control panels. Maintenance teams and system integrators use this drive for equipment repair, system upgrades, automation retrofits, and replacement of existing PowerFlex motor drives.

Applications:

The Allen-Bradley 22A-D2P3N104 PowerFlex 4 AC drive is used in industrial motor control systems where adjustable speed and efficient motor operation are required. It is commonly applied in conveyor and material handling systems, pump and fan control, packaging equipment, mixers, and small manufacturing machines where reliable variable speed motor control improves process efficiency and machine performance.

Technical Specifications:

• Manufacturer Part Number (MPN): 22A-D2P3N104
• Product Type: Adjustable Frequency AC Drive
• Series: PowerFlex 4
• Motor Power Rating: 0.75 kW (1 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Output Current: 2.3 A
• Frequency Range: 0–400 Hz
• Control Method: Volts/Hertz (V/Hz) Control
• Enclosure Rating: IP20 (Open Type)
• Mounting Type: Panel Mount
• Communication Interface: Optional communication modules
• Operating Temperature: -10 to 50 °C (14 to 122 °F)

Common Replacements:

• Allen-Bradley 22A-D4P0N104
• Allen-Bradley 22F-D2P3N103
• Allen-Bradley 25A-D2P3N104
