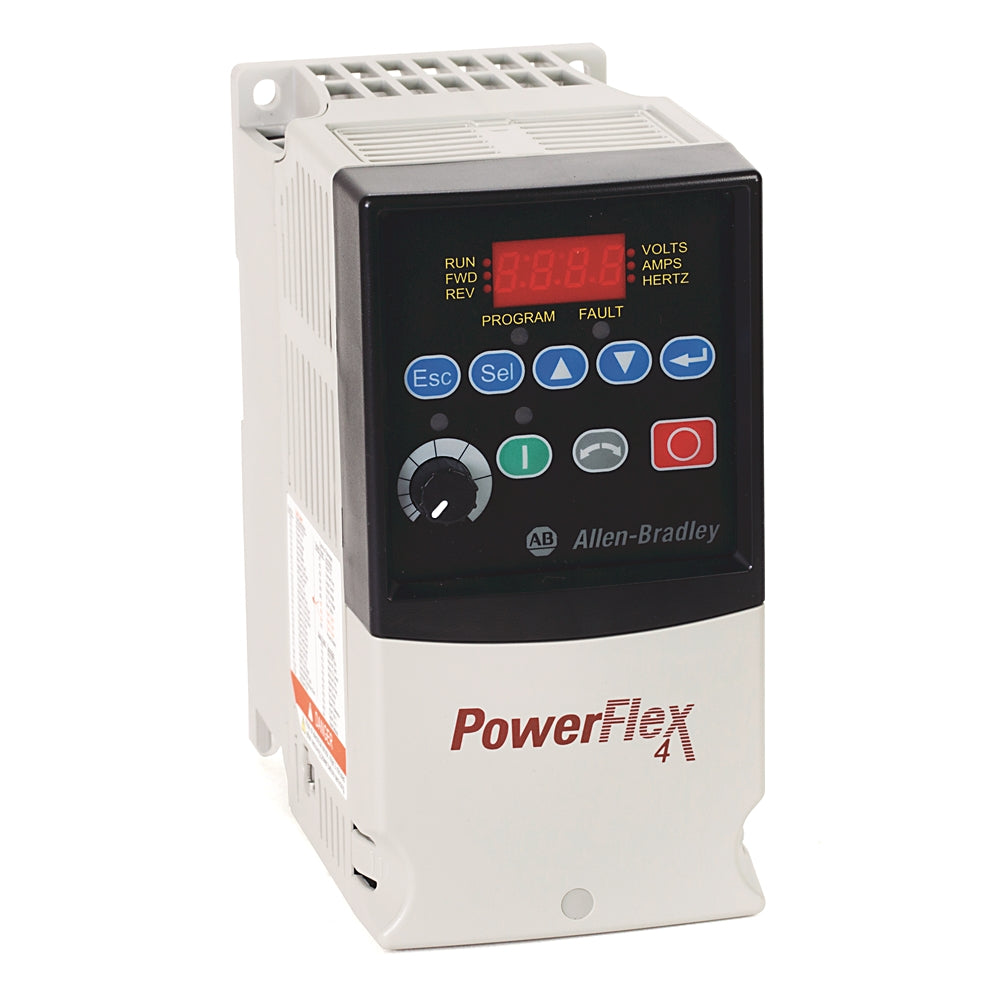

Allen-Bradley 22A-D4P0N104 PowerFlex 4- 1.5 kW (2 HP) AC Drive 22AD4P0N104

DESCRIPTION
The Allen-Bradley 22A-D4P0N104 is a PowerFlex 4 AC variable frequency drive (VFD) designed to control the speed of three-phase induction motors in light industrial applications. This model is rated for 2 HP, supports up to 10.5 amps output, and operates on a 240V AC input. It features a compact design, an integral keypad with an LED display, and user-friendly programming for simple motor control solutions.

TECHNICAL SPECIFICATIONS
Model: 22A-D4P0N104
Series: PowerFlex 4
Input Voltage: 200–240V AC, 1-phase or 3-phase
Output Voltage: 0–240V AC
Output Current: 10.5 A
Horsepower Rating: 2 HP
Frequency Range: 0–400 Hz
Enclosure: NEMA 1 / IP20 (vented, indoor use)
Control Method: Volts/Hertz (V/Hz) control
Operator Interface: Integral keypad with 4-digit LED display
Communication: Built-in RS-485 (DPI protocol)
Mounting: Panel mount
Ambient Temperature: 0 to 50°C (32 to 122°F)
Certifications: UL, cUL, CE, RoHS
