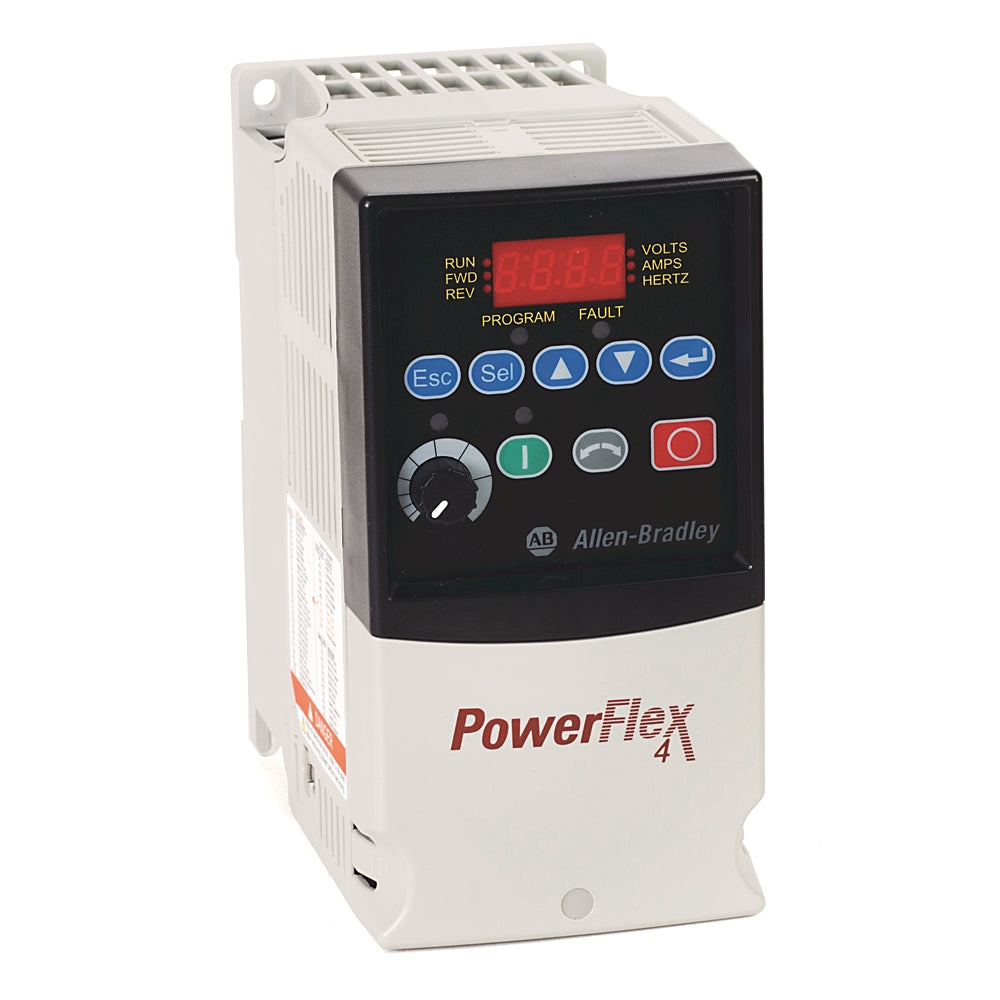

Allen-Bradley 22A-D6P0N104 2.2 kW 3 Hp AC Drive 22AD6P0N104

DESCRIPTION
The Allen-Bradley 22A-D6P0N104 is a PowerFlex 4 variable frequency drive (VFD) designed for general-purpose motor control in industrial applications. Rated for 3 horsepower (HP) and 6.0 amps, this compact drive operates on 200–240V AC input and features a NEMA 1 enclosure for indoor panel-mounted use. It supports V/Hz motor control, onboard RS-485 communication, and includes an integrated keypad for easy setup and operation.

TECHNICAL SPECIFICATIONS
Model: 22A-D6P0N104
Series: PowerFlex 4
Power Rating: 3 HP (2.2 kW)
Input Voltage: 200–240V AC, 1-phase or 3-phase
Output Current: 6.0 A
Frequency Range: 0–400 Hz
Enclosure Type: NEMA 1 / IP20 (vented, indoor use)
Control Method: Volts per Hertz (V/Hz)
User Interface: Integral keypad with 4-digit display
Communication: Built-in RS-485 (DPI protocol)
Mounting: Panel mount
Dimensions (HxWxD): Approx. 152 x 100 x 172 mm
Operating Temperature: 0 to 50°C (32 to 122°F)
Certifications: UL, cUL, CE, RoHS
