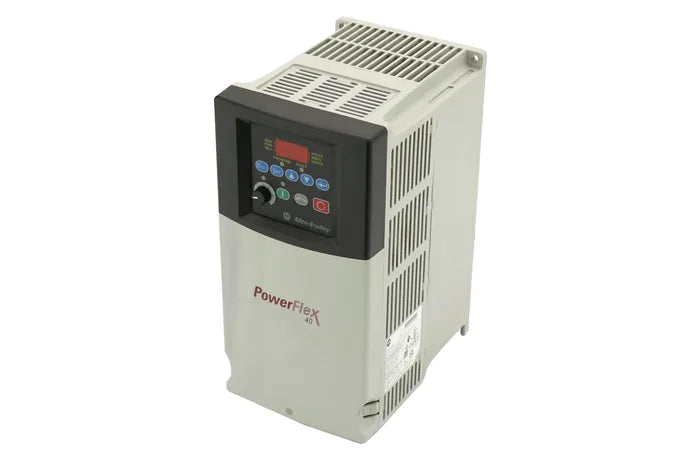

Allen-Bradley 22B-D012N104 5.5 kW 7.5 HP AC Drive 22BD012N104

Description:

The Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive is a compact variable frequency drive used in industrial motor control systems requiring adjustable speed and torque regulation. Designed for 380–480V three-phase input, this 5.5 kW (7.5 HP) drive delivers reliable performance for pumps, fans, conveyors, and general-purpose machinery in manufacturing environments. Maintenance teams, OEMs, and system integrators use this drive for equipment repair, panel retrofits, system upgrades, and replacement of legacy VFD units in automated production systems.

Applications:

The Allen-Bradley 22B-D012N104 PowerFlex 40 AC drive is widely applied in industrial automation systems to control three-phase induction motors. Common installations include material handling systems, packaging lines, HVAC equipment, water and wastewater pumping stations, and light-duty processing machinery where consistent motor speed control and energy efficiency are required. Its compact footprint makes it suitable for space-constrained control panels and standalone machine builds.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Part Number: 22B-D012N104
• Series: PowerFlex 40
• Rated Output Current: 12 A
• Input Voltage: 380–480V AC, 3-phase
• Output Voltage: 0–460V AC
• Power Rating: 5.5 kW (7.5 HP) Normal Duty
• Control Method: V/Hz Control
• Enclosure Rating: IP20 (Open Type)
• Mounting Type: Panel mount
• Output Frequency Range: 0–400 Hz
• Ambient Operating Temperature: 0°C to 50°C (without derating)

Common Replacements:

• Allen-Bradley 22B-D017N104
• Allen-Bradley 25B-D012N104
• Siemens 6SL3210-1PE21-4UL0
