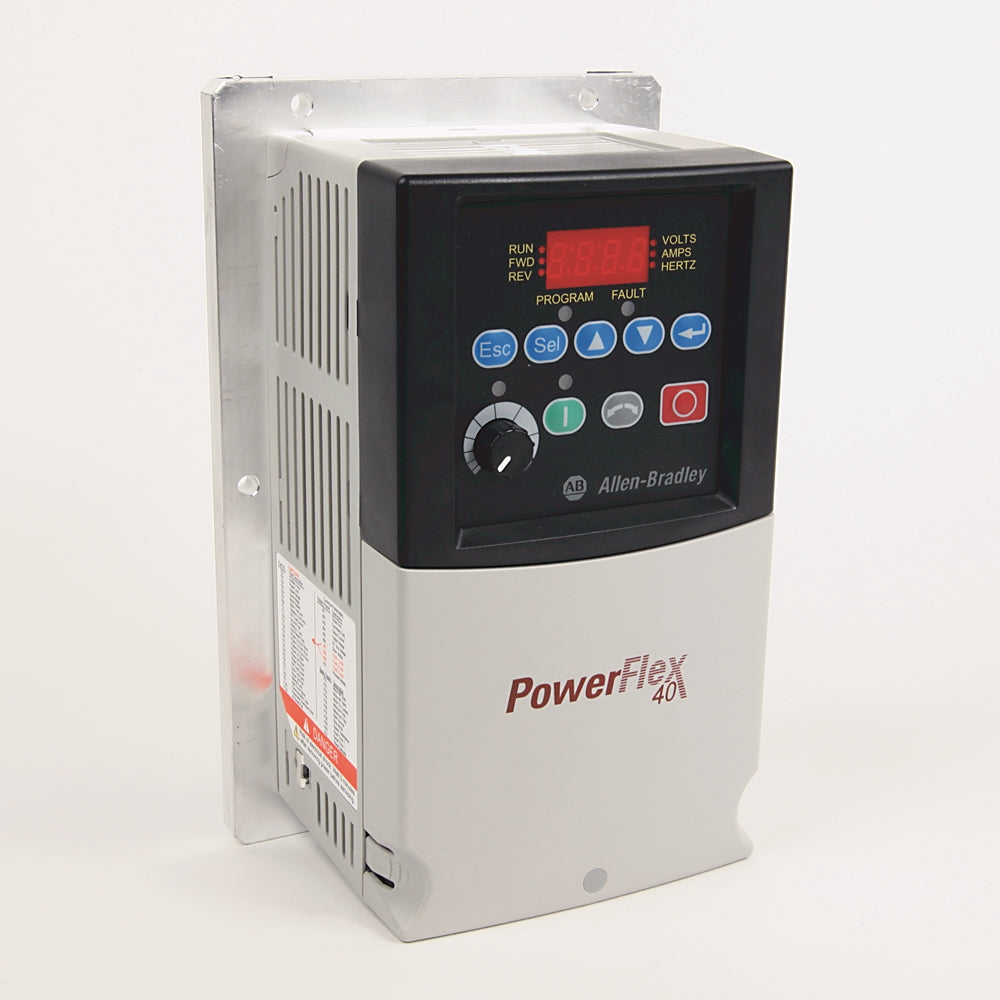

Allen Bradley 22B-D6P0H204 PowerFlex 40 VFD Enclosure Heatsink Fuse 22B-D6P0H204

Description:

The Allen Bradley 22B‑D6P0H204 PowerFlex 40 VFD is a variable frequency drive used to control three‑phase AC motors for adjustable speed, torque, and efficient motor operation. Installed in industrial motor control panels, machine cabinets, or standalone enclosures where precise speed control, soft start/stop control, and motor protection are required. Maintenance teams, system integrators, and OEMs use this drive for replacement, retrofit, and automation upgrades to improve motor performance, reduce energy use, and extend equipment life.

Applications:

The Allen Bradley 22B‑D6P0H204 PowerFlex 40 VFD is used to regulate pumps, fans, conveyors, mixers, compressors, and material handling equipment in manufacturing plants, HVAC systems, water/wastewater facilities, and packaging machinery where adjustable motor speed and smooth dynamic performance improve operational efficiency. Allen Bradley PowerFlex drives are deployed in industrial automation where reliable control, integrated diagnostics, and motor protection are essential.

Technical Specifications:

• Manufacturer: Rockwell Automation / Allen Bradley
• Model / Part Number: 22B‑D6P0H204
• Series: PowerFlex 40
• Product Type: Variable Frequency Drive (VFD)
• Rated Motor Power: 3 HP (2.2 kW)
• Input Voltage: 480 V AC three‑phase
• Output Frequency Range: 0–60 Hz
• Control Method: V/f control
• Current Rating: Model dependent for 3 HP class
• Heatsink: Integrated enclosure heatsink for thermal management
• Protection Features: Overload, overcurrent, overvoltage, and ground fault protection
• Fuse: Internal or external fuse provisions for input/output protection
• Interface: Built‑in keypad/display for configuration and monitoring
• Mounting: Panel or enclosure mount
• Certifications: UL/cUL, CE certified where applicable
• Operating Temperature: Industrial specification range
• Application: AC motor speed and torque control in automated systems

Common Replacements:

• Allen Bradley PowerFlex 525 3 HP VFD
• Allen Bradley PowerFlex 753 3 HP VFD
• Siemens SINAMICS G120 3 HP drive
