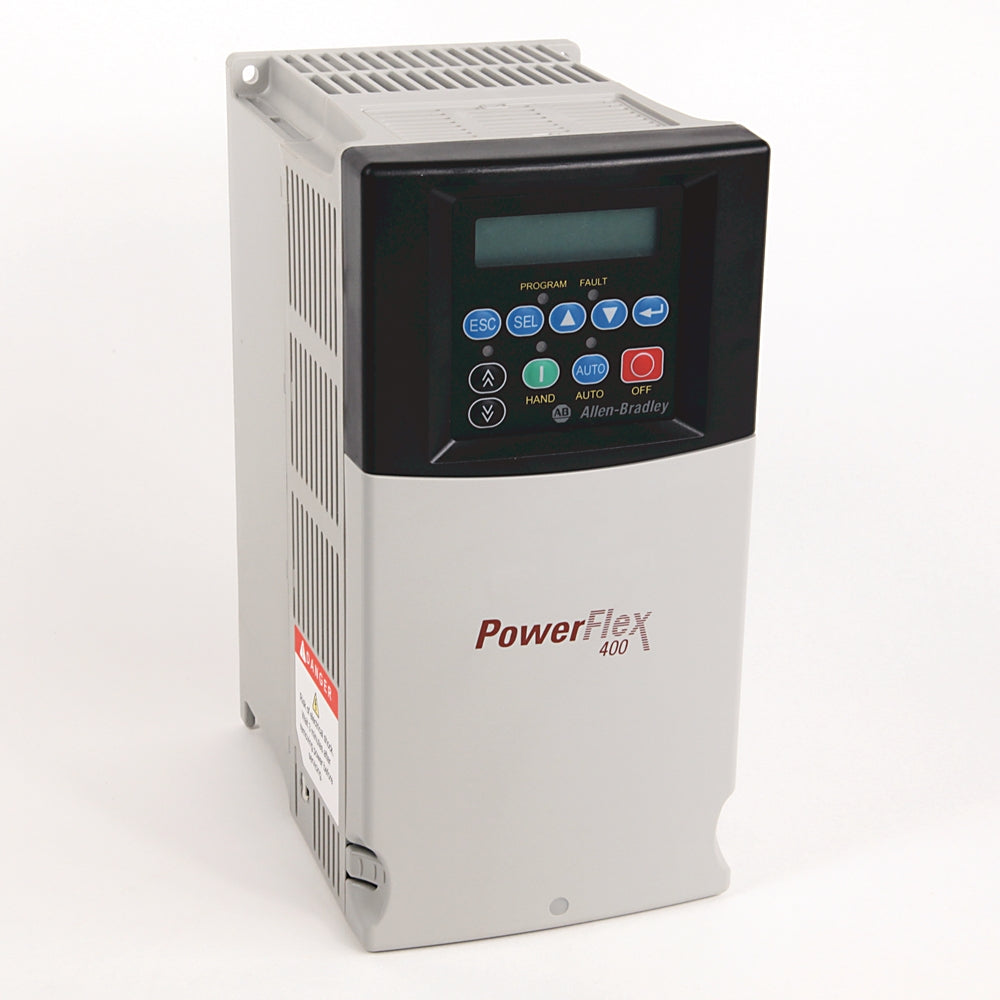

Allen-Bradley 22C-D022N103 PowerFlex 400 AC Drive, 10 HP, 240V, 22A, 3-Phase 22CD022N103

Description:

The Allen-Bradley 22C-D022N103 PowerFlex 400 AC Drive (22CD022N103) is used in variable frequency drive systems to control the speed and torque of three-phase AC motors. Commonly installed in fan systems, pump stations, HVAC equipment, cooling towers, and industrial ventilation systems where energy efficiency and reliable motor control are required. Maintenance teams, OEMs, and system integrators use this drive for system retrofits, drive replacements, panel upgrades, and process optimization to improve operational performance and reduce energy consumption.

Applications:

The Allen-Bradley PowerFlex 400 AC Drive is primarily designed for constant torque and variable torque applications, especially in commercial and industrial HVAC systems. It is widely used in air handling units, exhaust fans, booster pumps, and water circulation systems where adjustable speed control enhances efficiency, reduces mechanical stress, and extends equipment lifespan.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 22C-D022N103
• Product series: PowerFlex 400
• Rated power: 10 HP
• Input voltage: 240 V AC
• Output current: 22 A
• Phase: Three-phase
• Control method: V/Hz control
• Frequency range: 0–400 Hz
• Enclosure rating: IP20 / NEMA Type Open
• Mounting: Panel mount

Common Replacements:

• Allen-Bradley 25A-D024N104
• ABB ACS355-03E-23A1-2
• Siemens 6SL3210-1KE17-5UF1
