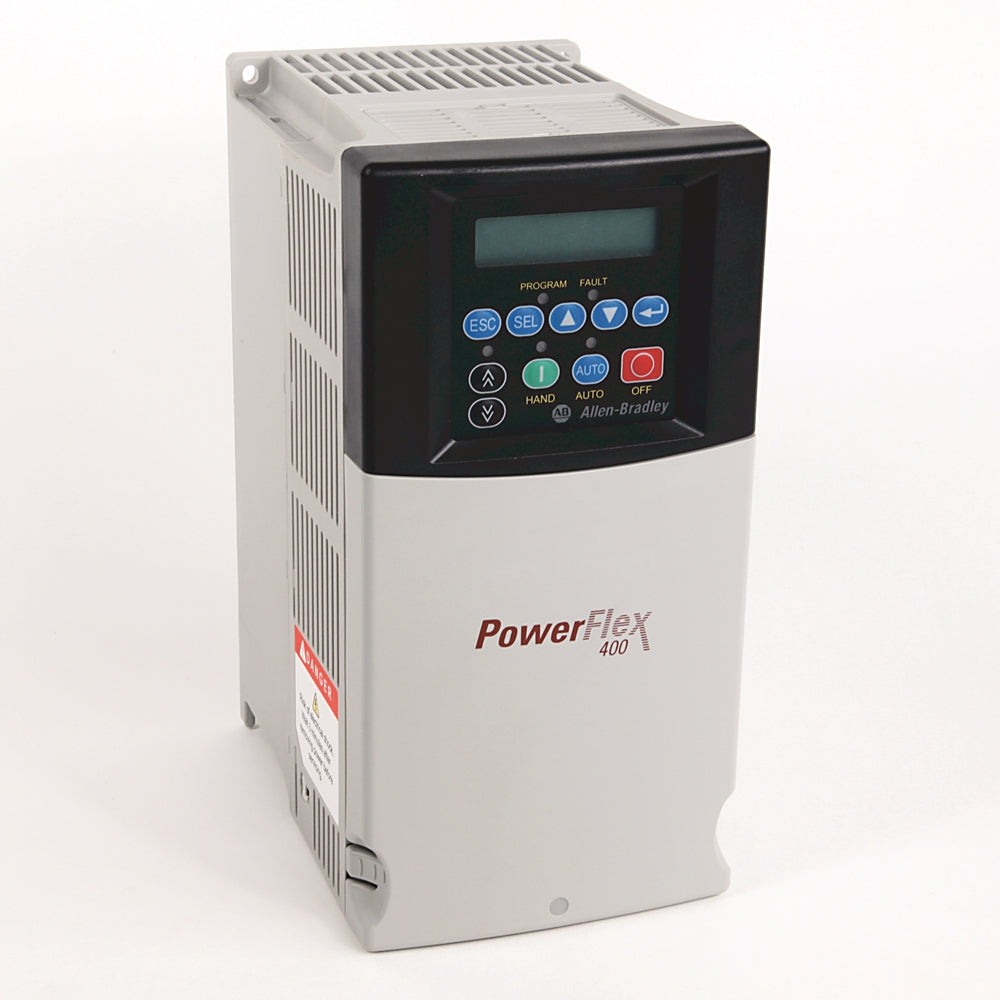

Allen-Bradley 22C-D030N103 Power Flex 400 AC Drive 15kW 20HP 22CD030N103

Description:

The Allen-Bradley 22C-D030N103 PowerFlex 400 AC Drive is used in industrial motor control systems to provide variable speed control and efficient operation for three-phase AC motors in mid-power applications. Commonly installed in conveyor systems, pump and fan applications, compressors, mixers, and automation equipment where precise speed regulation enhances process performance and energy efficiency. Maintenance teams and system integrators use this drive for system retrofits, replacement of failed VFDs, control panel upgrades, and implementation of advanced motor control solutions.

Applications:

The Allen-Bradley PowerFlex 400 22C-D030N103 drive is commonly used in industrial automation environments including manufacturing production lines, water and wastewater facilities, material handling systems, HVAC units, and processing equipment where adjustable motor speed improves operational reliability, reduces mechanical wear, and enhances overall system uptime.

Technical Specifications:

• Manufacturer: Allen-Bradley
• Model: 22C-D030N103
• Product Type: AC Drive / Variable Frequency Drive
• Series: PowerFlex 400
• Input Voltage: 480 V AC, 3-phase
• Power Rating: Approximately 15 kW (20 HP nominal)
• Rated Output Current: Industrial-rated current (model dependent)
• Frequency Range: 0–60 Hz (programmable)
• Control Methods: Advanced motor control with sensorless vector capability
• Enclosure/Frame: Industrial drive housing format
• Integrated Features: Built-in diagnostics and motor protection
• Communications: Optional network modules (EtherNet/IP, DeviceNet, etc.)
• Mounting Type: Panel or enclosure mounted drive unit
• Application Category: Industrial motor speed control and automation
• Operating Temperature Range: Industrial-rated conditions

Common Replacements:

• Allen-Bradley PowerFlex 525 22C-D030N103 Drive
• Rockwell PowerFlex 525 15 kW 480 V AC Drive
• ABB ACS355-03E-15A8-4 Inverter Drive
