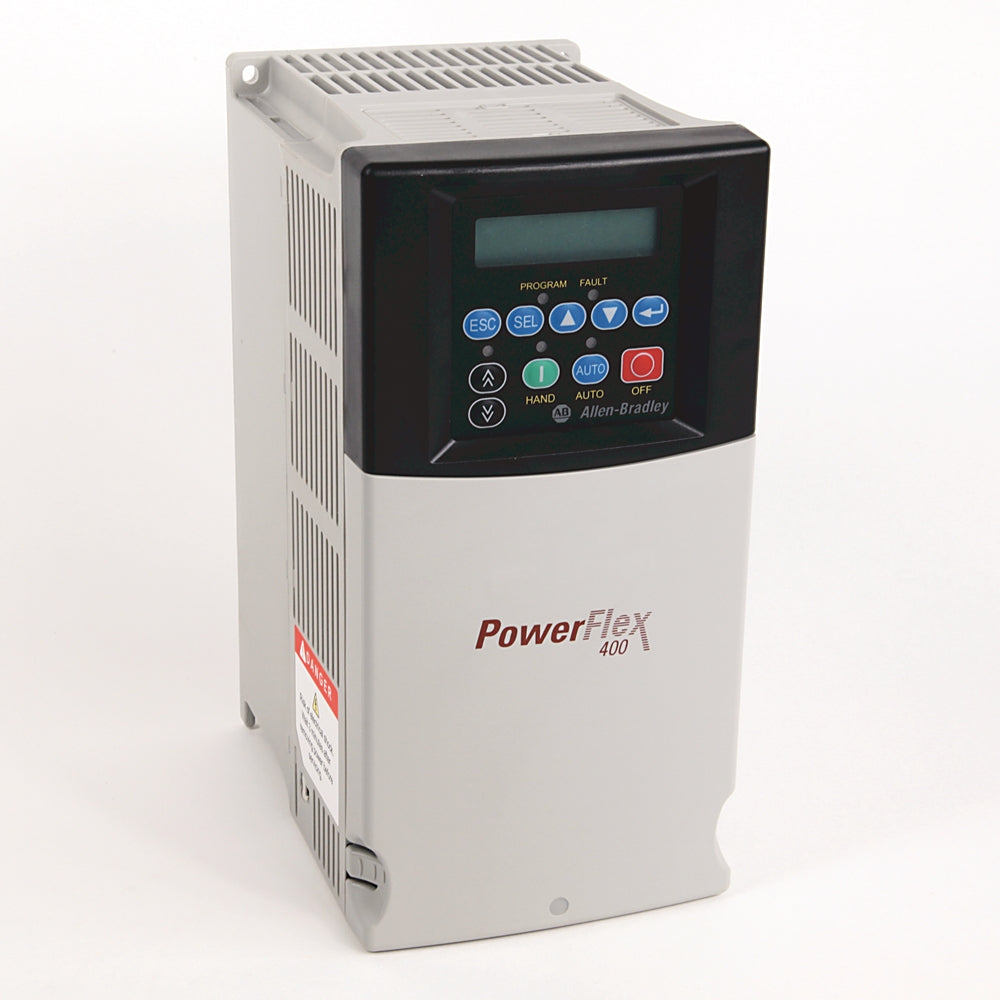

Allen-Bradley 22C-D030N103 Powerflex 400 20HP 15KW AC Drive 22CD030N103

Description:

The Allen-Bradley 22C-D030N103 PowerFlex 400 20HP 15kW AC Drive (22CD030N103) is used in industrial motor control systems to regulate the speed and torque of three-phase AC motors. Commonly installed in pumps, fans, conveyors, compressors, and HVAC systems where reliable and cost-effective variable frequency drive control is required. Maintenance teams, OEMs, and system integrators use this drive for equipment replacement, system retrofits, control panel upgrades, and improving energy efficiency in heavy-duty industrial applications.

Applications:

The Allen-Bradley 22C-D030N103 PowerFlex 400 drive is widely used in manufacturing plants, water and wastewater treatment facilities, oil and gas operations, and large material handling systems. It provides adjustable speed control for 20 HP motors, helping reduce mechanical stress, optimize process flow, and lower energy consumption in industrial environments requiring dependable motor regulation.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 22C-D030N103
• Product series: PowerFlex 400
• Product type: Variable frequency AC drive
• Rated power: 15 kW / 20 HP
• Input voltage: 480 V AC
• Output current: 30 A
• Phase: Three-phase
• Control method: V/Hz control
• Frequency range: 0–400 Hz
• Enclosure rating: IP20 / NEMA Type Open
• Mounting: Panel mount

Common Replacements:

• Allen-Bradley 25B-D030N114
• Allen-Bradley 20AD033A3AYNANC0
• Siemens 6SL3224-0BE27-5UA0
