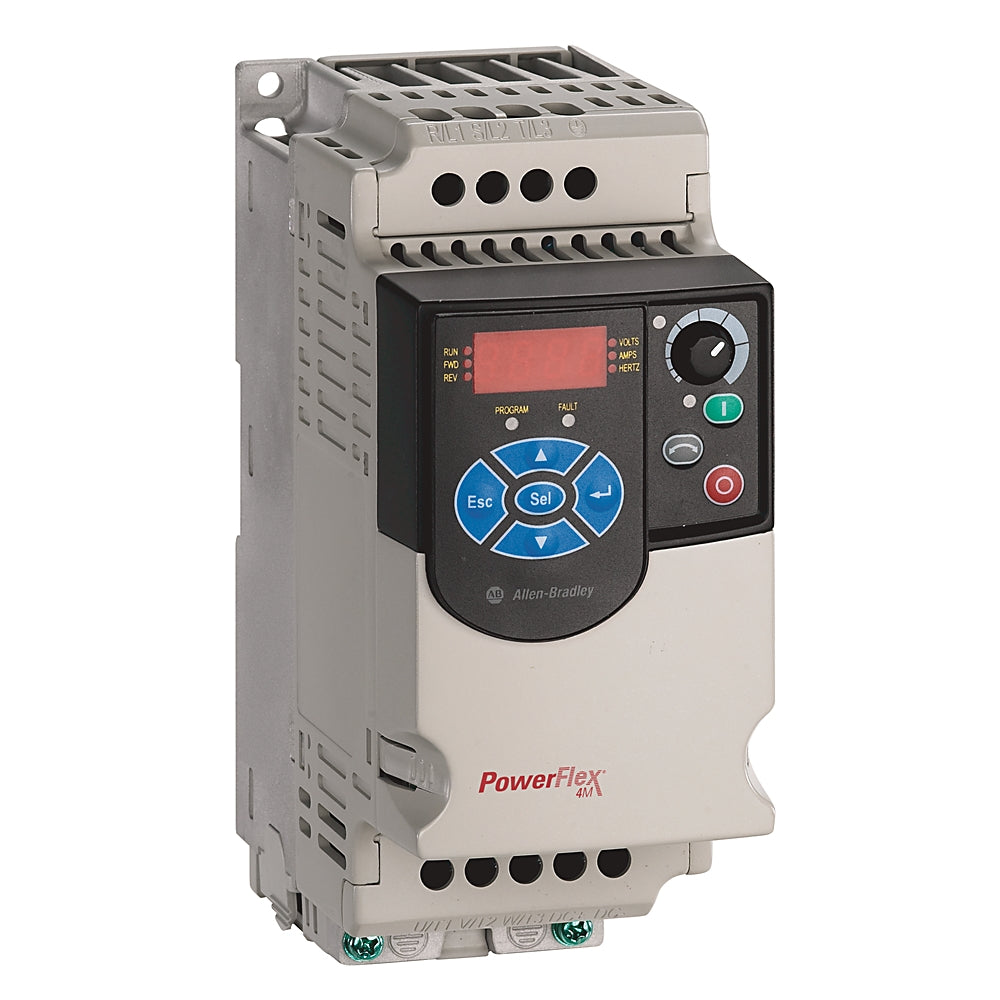

Allen-Bradley 22F-D4P2N103 PowerFlex 4M 1.5 kW 2 HP AC Drive 22FD4P2N103

Description:

The Allen-Bradley 22F-D4P2N103 PowerFlex 4M 1.5 kW (2 HP) AC Drive is used in variable frequency drive (VFD) systems to provide adjustable speed and torque control for three-phase AC motors in industrial applications. Commonly installed in conveyor systems, pumps, fans, mixers, and packaging machinery, it delivers compact and cost-effective motor control for light industrial equipment. Maintenance teams and system integrators use this drive for motor control upgrades, energy efficiency improvements, equipment retrofits, and replacement of failed low-horsepower VFD units.

Applications:

The Allen-Bradley 22F-D4P2N103 drive is applied in material handling systems, HVAC equipment, bottling and labeling machines, small processing skids, and OEM machinery where precise motor speed control and reliable operation are required in space-constrained control panels.

Technical Specifications:

• Manufacturer Part Number (MPN): 22F-D4P2N103
• Product Type: AC Variable Frequency Drive (VFD)
• Series: PowerFlex 4M
• Power Rating: 1.5 kW / 2 HP
• Input Voltage: 380–480V AC, 3-Phase
• Output Current: 4.2 A
• Output Voltage: 0–460V AC
• Control Method: Volts/Hertz (V/Hz)
• Frequency Range: 0–400 Hz
• Overload Capacity: 150% for 60 seconds
• Communication: RS-485 (Modbus RTU)
• Enclosure Rating: IP20 (Open Type)
• Mounting: Panel Mount
• Operating Temperature: -10°C to 50°C

Common Replacements:

• Allen-Bradley 25A-D4P0N104
• Allen-Bradley 22F-D2P5N103
• Allen-Bradley 22A-D4P0N104
