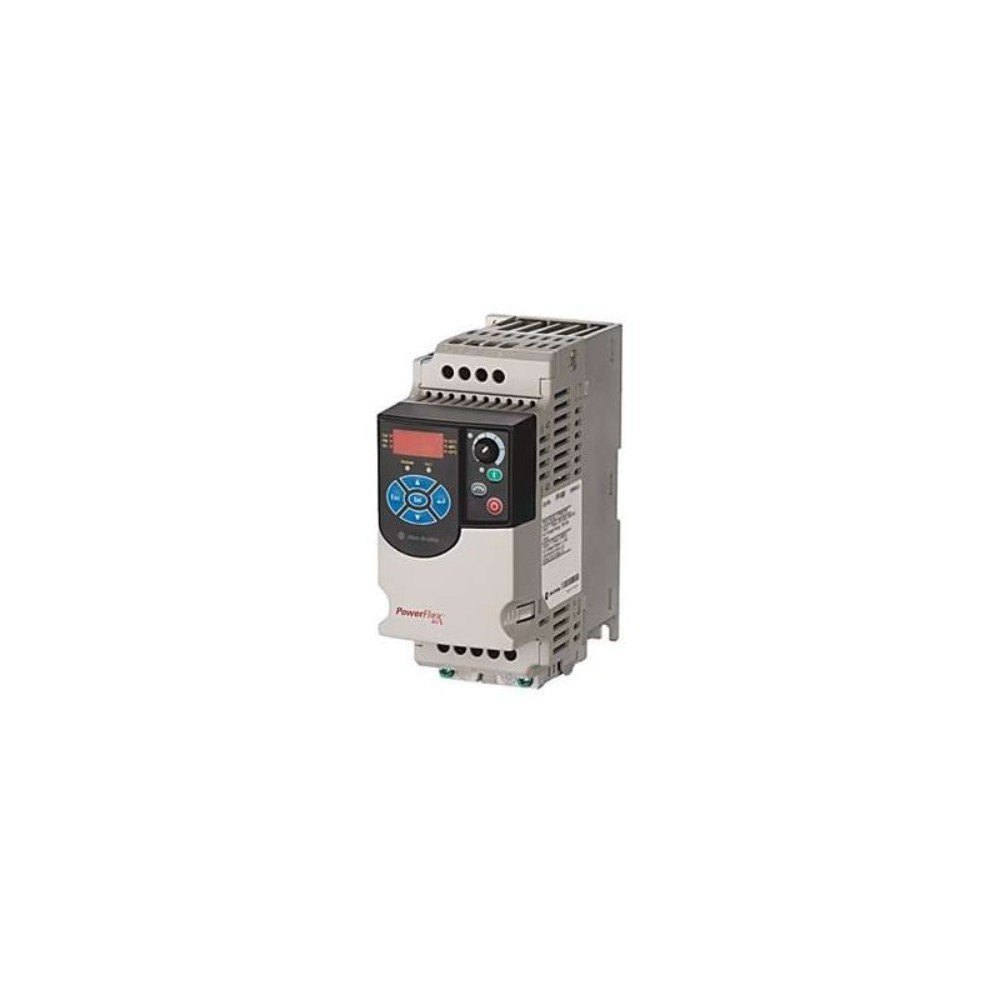

Allen-Bradley 22F-D4P2N113 AC DRIVE 22FD4P2N113

Description:

The Allen-Bradley 22F-D4P2N113 AC Drive (22FD4P2N113) is used in industrial motor control systems to regulate the speed and torque of three-phase AC motors. Commonly installed in conveyor systems, pumps, fans, mixers, and automated machinery where compact variable frequency drive performance is required. Maintenance teams, OEMs, and system integrators use this drive for equipment replacement, control panel upgrades, system retrofits, and improving energy efficiency in industrial automation applications.

Applications:

The 22F-D4P2N113 drive is widely used in manufacturing plants, water and wastewater treatment facilities, HVAC systems, and material handling operations. It supports adjustable speed control for low-horsepower motors, helping reduce mechanical stress, optimize energy consumption, and maintain consistent motor performance in demanding industrial environments.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Model / Part number: 22F-D4P2N113
• Product series: PowerFlex 4M
• Product type: Variable frequency AC drive
• Rated power: 1.5 kW / 2 HP (application dependent)
• Input voltage: 480 V AC
• Output current: 4.2 A
• Phase: Three-phase
• Control method: V/Hz control
• Frequency range: 0–400 Hz
• Enclosure rating: IP20 / NEMA Type Open
• Mounting: Panel mount

Common Replacements:

• Allen-Bradley 25A-D4P0N104
• Allen-Bradley 22F-D2P3N113
• Siemens 6SL3210-1KE15-8UF1
